Siglent Sdm3065X 6 1/2 Digits Dual-Display Digital Multimeters Multifunctional Measurement

Product Description

Product Description

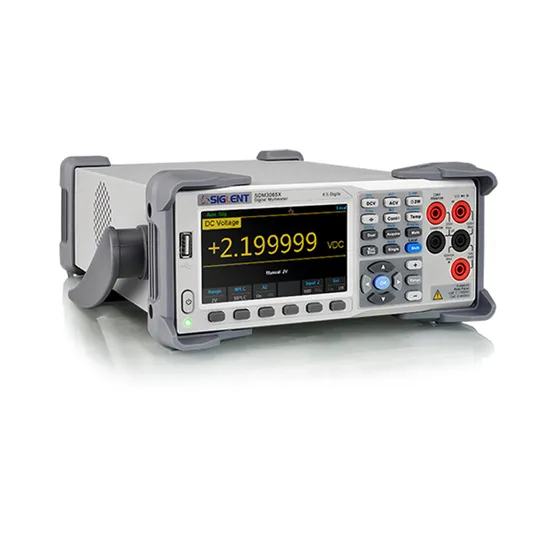

SDM3065X 6 ½ Digits Dual-Display Digital Multimeters Product Overview SIGLENT SDM3065X and SDM3065X-SC Digital Multimeters are a 6 ½ digit DMM (digital multimeter with 2,200,000 counts) incorporating a dual-display. The SDM3065X series is especially well-suited for the needs of high-accuracy and high-precision applications measurement.
The SIGLENT SDM3065X-SC includes a multiplexer that provides multi-point measurement capabilities. The scanner features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP ( RTD and Thermocouple ). It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing.
NOTE: The scanner is included on new SDM3065X-SC products only. It cannot be added to SDM3065X instruments at a later time.
Key Features Real 6½ digits readings resolution (2,200,000 counts) 1 Gb Nand flash size, Mass storage configuration files and data files True-RMS AC Voltage and AC Current measuring Standard interfaces: USB Device, USB Host, LAN (Optional Accessories: USB-GPIB Adapter) Optional Scanner for multipoint measurements (-SC part number)
Quick selection :

Model	Reading Resolution	DC Voltage Accuracy in a Year	DC Voltage Measurement Range	AC Voltage Measurement Range	DC Current Measurement Range	Scanner Card
SDM3065X	6 1/2	0.0035% of reading + 0.0006% of range	200 mV-1000 V	200 mV-750 V	200 µA-10 A	No
SDM3065X-SC	6 1/2	0.0035% of reading + 0.0006% of range	200 mV-1000 V	200 mV-750 V	200 µA-10 A	Yes

Supports double display, Chinese and English Menu File management (support for U-disc and local storage) Built-in cold terminal compensation for thermocouple Comes with easy, convenient and flexible any sensor measurement control software :EasyDMM Math Function: Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail Histogram, Trend Chart, Bar Meter,etc. Detailed Photos
