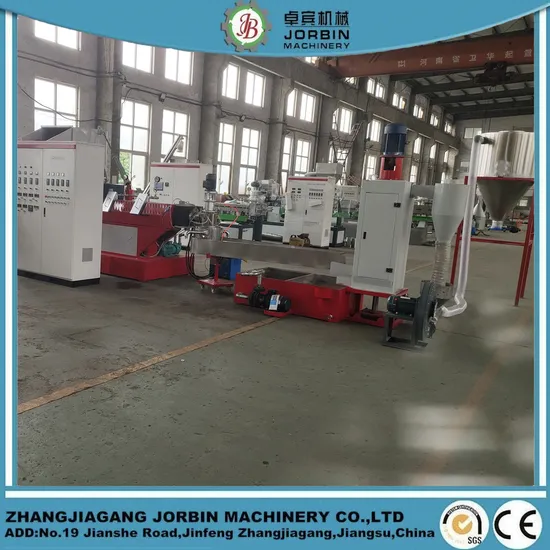

Advanced Plastic Recycling and Pelletizing Line for PE and PP

Product Description

plastic PE recycling machinery line, pelletizing machine granulating machine,Water-ring hot die LDPE film granulation machine HDPE film pelletizing machinery with vertical water-ring hot die face pelletizing way. It also can do with horizontal water-ring hot die face pelletizing way and wind cooling die face pelletizing way to meet the requirement of different material.
Material is cut,pre-dried,pre-heated,pre-homogenized and compacted in the shredding/compactor drum. Many materials can be processed directly without need of the upstream pre-shredding,resulting in a dramatic reduction in operational costs.
Less power consumption cost per kilogram,high throughput,reduced floor space occupation and operator attendance
This line can be used to process wasted thermo plastics:
such as PA, PP, PS, PE, EPE, EPS,PET,UPS,ABS Film etc. Like agriculture film/farm film and big bag.

Different screw design can produce different plastics.This is for hard or differend kinds of film.
Material types:Woven bag,printed LDPE film,film(rolls,loose,bundled),agricultural film waste,foamed plastics(EPS) and fibre,
Metal detector on the Belt conveyer
Customer can decide to install or not install metal detector on the belt. Metal detector can check the melt, if there is melt the detector will alarm and stop, peope chect out the melt and throw it way, and restart the belt conveyer again.

Machine detail parameter

Item NO.	Item name	Quantity	Power
1	Belt conveyor	1set	1.5kw
2	Φ130/33 single screw extruder	1 set	75kw
3	Compactor	1 set	55kw
4	Hydraulic screen changer system	1 set	1.5kw
5	Water-ring die face cutting system	1 set	1.5kW
6	Chute	1 set	---
7	Centrifugal dryer	1set	5.5kw
8	Wind transmission system	1 set	3kw
9	Storage Silo	1 set	---
10	Electrical control box	1 set	---

Feature 1. Highly efficent: the machine is automatic and with less power consumption.
2. Special screw design: We will design the screw up to customer different material and the material of screw and barrel can be 38CrMoAL or bimetallic.
3. no air in the pellets.
4. The machine wih long life.
The advantages of the compactor
1. Counter current technology
Hight process stability thorugh improved material intake ensures constantly high output over a considerably broader temperature rang
Higher flexibility and operational reliability with a variety of materials
Increased throughputs with the same plant size for more productivity 2. Smart Start Remarkably easy operate thanks to logical, clearly structured and simplified handing and ultramodern ergonomiic touchscreen disply.
Fewer buttons, more user-friendliness-thanks to high degree of automat on including extensive control packages.
The right recipe for every application-saved processing paramerter can be loaded easily and conveniently from the recipe management system at the push of a button 3. Save Lower specific energy requirements thanks to a complete package featuring design and process engineering measures including the new direct drive for the extruder screw
Lower production costs through optimised control technology and high-quality, energy-efficient components such as high-performance motors
Additionally, the parctical energy dispaly on your operating panel gives you a constant overvies of eenergy consumption at all times, thus enabling you to take specific measures to optimise consumption
Environmental protection More machine photoes
Layout of the machine

Belt conveyer 2.Compactor 3.ML-100/33 Single screw extruder 4.Hydraulic screen changer 5. Vertical pelletizing system 6.Chute 7.Centrifugal dryer 8.Wind transimssion 9.Silo

Belt material: PVC
Plank material: carbon steel,
Motor power:1.5kw
Width of conveyer:500mm
Rack: steel framed structure
Compactor(with counter current technology,more material can be send to the mouth of the screw feeder,then the machine capacity will be much higher)
Single Screw Extruder(Special designed by different material(screw and barrel) ,to plastify, heating different material, each material the temperature, screw design is different.
Centrifugal Dryer
Water-ring hot cut die The final product
Pameter of such kinds of machine

Type	L/D	Main power	Compactor power	Speed	Capacity(kg/h)
ML85	33	55KW	37kw	10-150	150-200
ML100	30/33	90KW	55kw	10-150	250-350
ML130	30/33	132KW	90KW	10-150	450-600
ML160	30/33	160KW	132KW	10-150	600-800
ML180	33/36	200KW	160KW	10-150	800-1000
ML200	33/36	250KW	200KW	10-150	1000-1200

1. We supply below necessary documents with the machine:
Machine layout Electricity diagram Machine certificate General manual book/maintenance book 2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.
3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.
4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.
5. 24Hours service : Cell+86-13915707468
