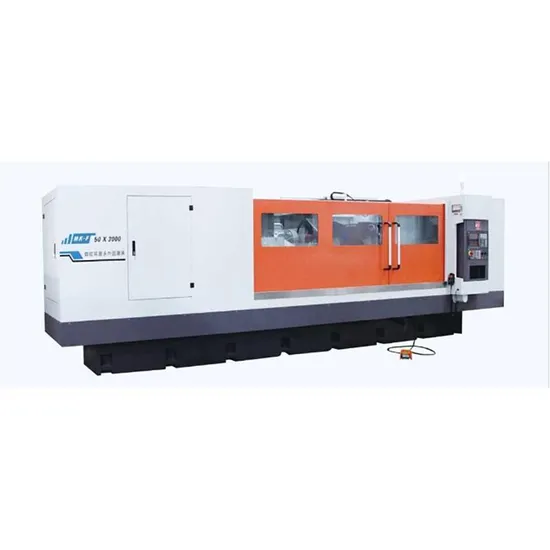

Mk-F50 CNC Double Grinding Head Cylindrical Grinding Machine
| US$50,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MK-F50
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Woodencase
Origin
China
Production Capacity
1000pic/Year
Product Description
Product DescriptionProduct Parameters
Description MK-F50/(1000-1500-2000-3000)
| center height | 270mm | |
| grinding diameter | φ30~φ500mm | |
| Diameter of rotation | φ540mm | |
| Max.grinding length | 1000150020003000 | |
| Center distance | 1100110021003100 | |
| center height | 270mm | |
| Max,weight ofworkpiece | 1000Kg | |
| Headstock | Morse taper | 6MT6 |
| speed | 15~500r/min | |
| Tail stock | Morse taper | 6MT6 |
Sleeve movement | 70mm | |
| Wheel | Wheel size | A:φ750×100×305 B:φ750×75×305 |
| Linear speed | ≤45m/s | |
Description MK-F50/(1000-1500-2000-3000)
(A,B) Wheel stock | Max. movement | 400mm |
| Spindle tilt Angle | 0° | |
Spindle motor power | 15kW | |
worktable | Type | Adjustable taper |
Max. turning Angle of upper table | ||
| Minimum resolution of drive servo motor | 0.001mm | |
Transverse feed mechanism | Ac servo motor torque | 22Nm |
| Minimum resolution of drive servo motor | 0.0001mm | |
| Total power | 40kW | |
| Roundness | ≤0.003 | |
| Cylindricity | ≤0.008/1000 | |
| Surface roughness | ≤Ra 0.32μm | |
Detailed Photos
