Precision Zmde CNC Steel Plate Drilling Machine for Industrial Use

Product Description

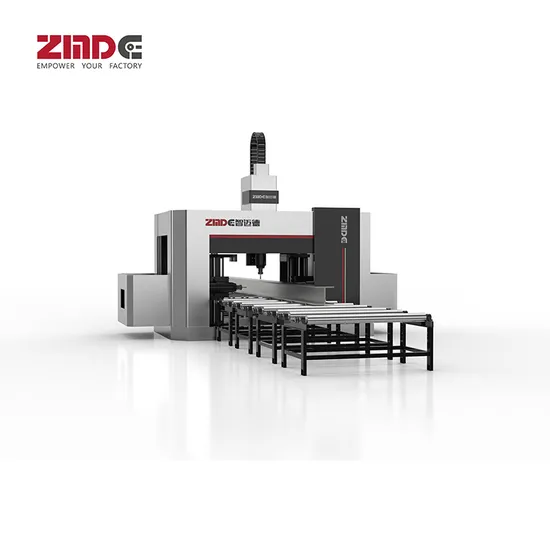

ZMDE H Beam Steel Plate Processing 3D CNC Drilling Machine
Technical Parameters

Item.	Model.	Machine Technical.
CNC 3D drill	ZMD-GSWZ10070/3A	1.H-beam: 150x80~1000x700mm 2.U-beam: 150x80~1000x400mm 3.Box beam: 150x80~1000x400mm 4.Thickness: ≤80mm 5.Length: 12m 6. Short material limit: automatic processing ≥ 3000mm 7.Manual processing: 690~3000mm 8.Power source: AC 380V 50HZ 3-phase

This revolutionary device drills precise holes on three sides of H-beam steel simultaneously, featuring 7 CNC axes and CAD/CAM-generated processing programs. It accommodates H-beam sections up to 1000×500mm, with a maximum drilling diameter of 33.5mm. The advanced control system integrates computer numerical control, AC servo, photoelectric encoder, and PLC. Simply input the workpiece dimensions to auto-generate machining programs. These can be stored, recalled, displayed, and processed by part number with ease.

More Machine Configuration (Due to different product models, the actual product may differ slightly from the picture)
Machine Model		ZMD-SWZ-74-A
H Beam Processing range(mm)		150×100-700×400
Automatic feeding length(mm)		1500-12000
Max. Web plate thickness(mm)		≤40
Max. weight of workpiece(kg)		4000
Number of drilling spindles		3×3=9
Spindle speed range(r/min)		180-720
Axial working speed(mm/min)		20-200
pper unit spindle feed travel distance(mm)		220
Max. drilling diameter(mm)		Φ33.5
Total power(kw)		≈30
Equipment Dimension L×W×H(mm)		28000×4220×3220

Company Profile
Founded in 2013, ZMDE Co., Ltd. is a trailblazer in the research, development, manufacturing, sales, and service of intelligent assembly building equipment. Recognized as a national leader in specialized, innovative 'small giant' enterprises, our core industries include steel structure assembly intelligent machines and industrial IoT and intelligent control systems.intelligent control system two plates.
Our headquarters are based in Lingang New Area, Pudong New District, Shanghai, covering 32,000 square meters. This state-of-the-art facility houses our Research Institute of Artificial Intelligence for Assembled Buildings and oversees company management, R&D of AI technologies for intelligent buildings, and the Industrial Internet of Things (IoT).
Our Shandong base, located in Weicheng District, Weifang City, focuses on the R&D and production of intelligent industrial mother machines for steel beams and walls in assembled buildings.mother machine for walls of assembled buildings.

FAQ
1. Q: What is the minimum order quantity for your products?
A: Our minimum order quantity is just 1 PCS, offering unparalleled flexibility for all our esteemed clients.2. Q: Could you specify the payment terms you accept?A: For your utmost convenience, we accept both L/C (Letter of Credit) and T/T (Telegraphic Transfer).3. Q: What is the typical delivery time for your orders?A: Our standard delivery time is approximately 30 days, ensuring your orders are fulfilled promptly and efficiently.4. Q: What is the duration of your warranty period?A: Our warranty period lasts for 1 year. Moreover, original manufacturers' equipment parts come with lifelong maintenance benefits.5. Q: Do you offer ODM/OEM services?A: Absolutely, we proudly offer both ODM and OEM services to cater to your specific needs and requirements.
