Stainless Steel Multi Spice Salt Sugar Grinder Grain Grinding Machine

Stainless Steel Multi Spice Salt Sugar Grinder Grain Grinding Machine

US$1,980.00 1 Piece (MOQ)

Basic Info.

Model NO.
WSBX series
Power Source
Electric
Capacity
100 Sets Per Month
Key Word 1
Stainless Steel Grinder Machine
Key Word 2
Spice Grinder Machine
Key Word 3
Grain Grinder Machine
Type
Impact Crusher
Drive
Electric
Crushing Degree
Fine Grinding Machine
Crushing Style
Grinding and Impact
Principle
Fixed Culling
Cutter Material
High-Speed Steel
Finished Surface
Gear Process
Compressive Strength (for Crushing)
>300MPa
Tongs′ Features
Adjustable Tongs
Object
Grain
Transport Package
Export Wooden Cases
Specification
ce co ccc
Trademark
GMEC
Origin
Zhengzhou
HS Code
84742010
Production Capacity
50-300kg\H

Packaging & Delivery

Package Size
60.00cm * 65.00cm * 130.00cm
Package Gross Weight
270.000kg

Product Description

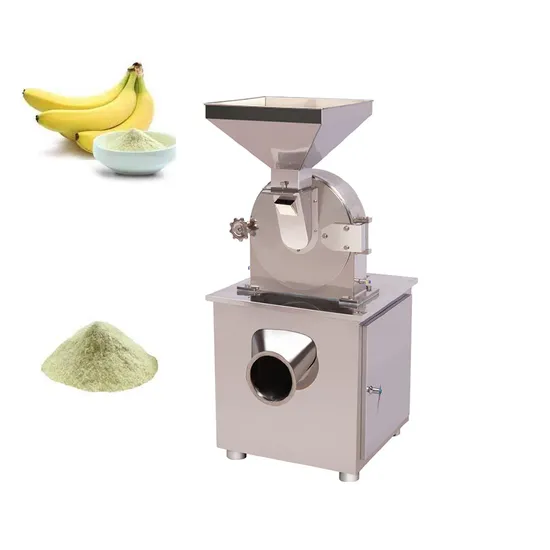

Fine powder Stainless Steel Stone Spice salt sugar Grinder grain Milling Machine
Introduction
The spice machine uses relative movement of the active hammer,grind the target material.the size of powder granules can be achieved by changing of screen.the machine has the features of easy structure ,solid,stable running and good efficiency. It can crush any feed. It is made out of stainless steel. "GPM" standard.

Application
This grinder machine can be mainly used for grinding various grains, dry spices and herbs, herbal medicines containing roots and branches, chemical materials, and some other hard and brittle materials.
Such as: grains,roasted coffee bean,spices,herbs,salt,sugar,pepper,walnut shells,seed,etc.After grinding, fine powder can be made.
Working Method
(1) The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials.
(2) The size of granules can be achieved by changing of the screen.
2. Introduction
(1) The machine has the fea-tures of easy structure. Solid, stable running and good efficiency.
(2) The crushed ma-terial is discharged directly from the grinding chamber of the main frame.
(3) In addi-tion, the whole machine is, made of stainless steel, with smooth inside walls to and avoid powder accumulation on the inside walls.
(4) The machine are in accordance with national require-ment, achieving "GMP" standard.
Notes:
1,According to your different material and also the mesh you want to crusher,the more fine powder you crush,the less capacity,hope you can understand.
2,For example,if you want to get 120mesh powder,the capacity will be 120kg\hour,if you want to get 12mesh powder,the capacity will be 1500kg\h.
Specification:
Model WSBX-20 WSBX-30 WSBX-40 WSBX-60
Capacity(kg/h) 30-150 50-300 80-800 120-1500
Speed of principal axis(r/min) 4500 3800 3400 2600
Size of input granules(mm) < 6 < 10 < 12 < 15
Fineness of products (mesh) 12-120 12-120 12-120 12-120
Power(kw) 4 5.5 7.5 15
Weight(kg) 250 320 450 600
Overall size (L× W× H) (mm) 550× 600 × 1250 600× 750 × 1450 750× 900 × 1550 950× 1000 × 1850

Contact details:
Grace
Mobile +86 17737312676
