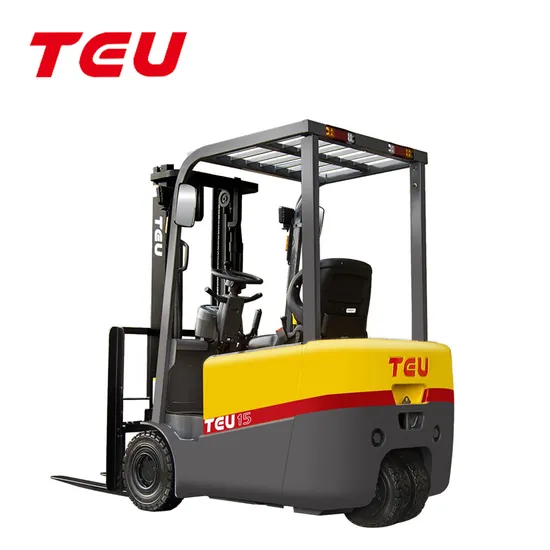

1.5-2.0 Ton Electric 3 Three-Wheel Battery Reach Diesel Forklift Truck
| US$7,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FTB15
Cab Location
Not Adjustable
Type
Electric Forklift
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Load center
500mm
Lift height
>5000mm
Condition
New
Battery
Free Mantainence
Color
Optional
Lithium Battery
for Option
Lifting Motor
AC
Driving Motor
AC
Transport Package
Nude Packing
Trademark
TEU
Origin
China
HS Code
8427209000
Production Capacity
6000units/Year
Product Description
Descriptions:| FTB15 TECHNOLOGY SPECIFICATION | ||||
| Specifications | Manufacturer | TEU | ||
| Model | FTB15 | |||
| Load capacity | kg | 1500 | ||
| Load center | mm | 500 | ||
| Power unit | Battery | |||
| Operator type | Driver/seat | |||
| Tire type | SOLID TIRES | |||
| Wheel(x=driving) | Front/rear | 2X/2 | ||
| Dimensions | Max. lifting height | mm | 3000 | |
| Free lift | mm | 110 | ||
| Fork size | L*W*T | mm | 920*100*35 | |
| Tilt range | Mast forward/backward | deg | 5/6.5 | |
| Overall length(without fork) | mm | 1785 | ||
| Total width | mm | 1054 | ||
| Mast height (fork lowering) | mm | 1995 | ||
| Overall height fork raised | With backrest | mm | 4020 | |
| Height to head guard | mm | 1970 | ||
| Turning raduis(outside) | mm | 1445 | ||
| Load distance | mm | 380 | ||
| Min. right angle stacking aisle | not add load length &clearence | mm | 3010 | |
| Performance | Speed | Max Travelling- full load | km/h | 15 |
| Max Travelling- No load | km/h | 16 | ||
| Lifting- full load | mm/s | 280 | ||
| Lifting- no load | mm/s | 430 | ||
| lowing- full load | mm/s | 440 | ||
| Lowing- no load | mm/s | 420 | ||
| Gradeability | full load | % | 20 | |
| no load | % | 20 | ||
| Weight | Truck weight (with standard battery) | kg | 2960 | |
| Weight distribution | Full load - front/rear | kg | 4010/450 | |
| No load- front/rear | kg | 1420/1540 | ||
| Chassis& Wheels | Tires | Number | front/rear | 2/2 |
| Model | front axle | 18x7-8 | ||
| rear axle | 15x4.5-8 | |||
| Wheelbase | mm | 1250 | ||
| Tread | Front/rear | mm | 910/180 | |
| Ground clearence | At lowest point(mast) | mm | 109 | |
| Frame | mm | 95 | ||
| Brake | Service brake | Hydraulic-foot pedal | ||
| Parking brake | Mechanical-hand lever | |||
| Drive Line | Battery | Voltage/capacity | V-AH/5hr | 48V-400 |
| Weight with box (standard) | kg | 650-700 | ||
| Electric motor | AC Driving motor | kw | 4.75 | |
| DC Hydraulic driving motor | kw | 8.2 | ||
| AC Hydraulic driving motor (as option) | kw | 10 | ||
| Control type | Driving AC , lifting DC Driving AC , lifting AC(as option ) | |||
| Operating pressure | kg/cm² | 145 | ||
Warranty: Forklift with imported engines: 1 YEAR OR 2000 WORKING HOURS, SUBJECT TO THE FIRST.
Forklift with Chinese engines: 6 months OR 1000 WORKING HOURS, SUBJECT TO THE FIRST.
Electric forklift and electric reach forklift: 1 YEAR OR 2000 WORKING HOURS, SUBJECT TO THE FIRST.
