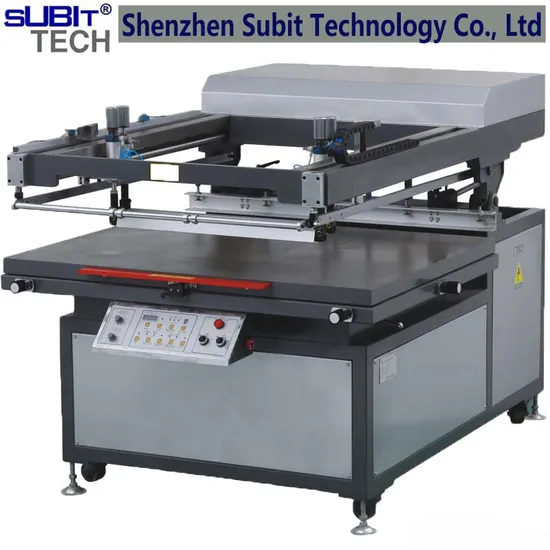

Automatic Oblique Arm Type Flat Screen Printing Machine

Product Description

diagonal arm type silkscreen printing machine
This series of flat screen printing machine is widely used in the packaging industry (such as: cigarette packaging, wine packaging, gift box packaging, cosmetic boxes and other cardboard packaging printing), trademarks, calendars, paintings, computer keyboards, New Year paintings, transfer paper , Stickers, credit card printing, it's also suitable for printing in the electronics industry.
Type no.# SBT-PM6090T
Max printing area: 600* 900 (mm)
Max printing speed : 1350 times / h
Printing thickness: 0-50mm
Power (v / hz) : 380V / 50hz
Capacity: 2.6KW
Dimensions (L * W * H) 1700 * 1080 * 1250 (mm)
Same equipment with different model parameter:

Equipment model	SBT-PM6090T	SBT-PM70100T	SBT-PM90120T
Worktable area(mm)	720*1000	800*1100	1000*1300
Max.printing area(mm)	600*900	700*1000	900*1200
Max.screen plate(mm)	900*1200	1200*1300	1200*1500
Min.screen plate(mm)	450*550	550*650	650*700
Printing thickness(mm)	0-20, 0-50	0-20, 0-50	0-20, 0-50
Printing speed(pcs/h)	500-1200	500-1200	400-1000
Working air pressure(Mpa)	0.3-0.5	0.3-0.5	0.3-0.5
Air consumption (0.6Mpa)(L/pcs)	13/pcs	13/pcs	13/pcs
Worktable the lowest height(against to ground surface)(mm)	820	820	820
Outer dimensional(L*W*H)(mm)	1500*1200*1250	1600*1350*1280	1800*1400*1300
Weight(kg)	410	480	550
Voltage(V/HZ)	220V50HZ	220V50HZ	220V50HZ
Power (kw)	2.3	2.3	3.7

Equipment Performance:
1. Equipped with frequency motor drive, quick moving, uniform speed, it's adjustable for fast or slow down speed;
2. The diagonal arm is driven by a variable frequency motor, frequency speed control, smooth operation of the whole machine;
3. Scraper and back to the inkjet four-cylinder can be individually switched, and the printing pressure can be adjustable;
4. Vacuum adsorption fixed print object;
5. Equipped with front and rear, left and right slight adjust device on the worktable, so that it is more accurate and convenient for on check;
6. Equipped with safety device, so that the diagonal arm stop at the top position and it has reliable security;
7. Mechanical off-grid, off-grid speed same as printing synchronization, to prevent sticky;
8. Adjustable front and rear clip, the smallest available 400mm screen plate, greatly improving the scope of the screen.
9. Electronic control unit controlled by the microcomputer centralized control, the whole operation is more simple, flexible, easy maintenance.
PACKING&SHIPPING
non-wooden case packed
Outer dimensional: 1600*1300*1350MM
Weight: 510KGS OTHER PRODUCTS
