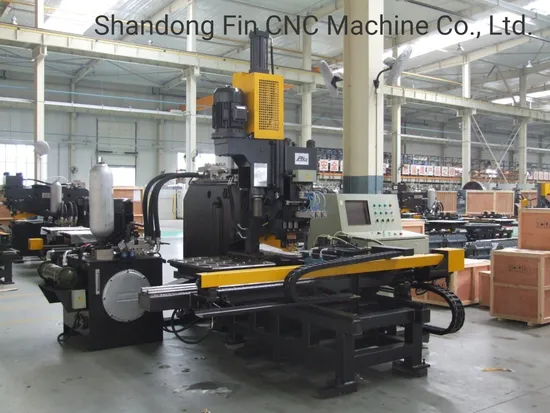

CNC Tower Connecting Plate Hydraulic Automatic Eyelet Work Punching Marking Machine

Product Description

CNC Tower Connecting Plate Hydraulic Automatic Eyelet Work Punching Marking Machine 1500mm*775mm*25mm
Product Description:
PP123 CNC Hydraulic Punching Machine for Plates
Applicable Industry:
CNC hydraulic flat punching machine is mainly used in steel structure, electric power and automobile industries.
The punching of the plate can be carried out after the workpiece is clamped once, so as to ensure the position accuracy of the hole.
Main Technical Specifications:

Workpiece size	Thickness	5-25mm
	Max. size of workpiece	1500×775mm
Punching capacity	Punch force	1200KN
	Max size diameter	Φ30mm
Punching diameter × thickness	For Q235 steel σ≤420MPa	Φ30×25mm
	For Q420 steel σ≤680MPa	Φ25.6×20mm
Capacity of marking	Marking force	1200KN
	Character size	14×10mm
	Quantity of characters per unit	16
	Quantity of CNC axes	2
	Stroke of X axis---speed	0-18m/min
	Stroke of Y axis---speed	0-18m/min
Motor power	Motor power of oil pump	22KW
	AC servo motor power of X axis	2KW
	AC servo motor power of Y axis	2KW
Hydraulic system	Highest pressure of high-lift pump	24MPa
	Work-pressure of high-lift pump	20MPa
	Work-pressure of low-lift pump	5.5MPa
	Volume of oil tank	320L
	Cooling type	Water Cooling
Pneumatic system	Work pressure	Max. 0.6MPa
		Min. 0.5MPa
Electric parameters	Type	3 Phase Electricity
	Normal Pressure	380V
	Normal Frequency	60Hz
	Total power	26KW
	Overall dimensions (L×W×H)	3600×2800×1870mm
	Net weight of the machine	About 7500kg

List of the Key Outsourced Components

No.	Name	Quantity	Country
	AC Servo Motor	Delta	Taiwan China
	PLC	Delta
	Electromagnetic unloading valve	ATOS	Italy/Taiwan China
	Relief valve	ATOS
	Electromagnetic directional valve	JUSTMARK	Taiwan China
	Bus bar	SMC/CKD	Japan
	air valve	SMC/CKD
	Cylinder	SMC/CKD
	Duplex	Air TAC	Taiwan China
	computer	LENOVO	China

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
Product Feature:
The machine-frame is made by C-type plate welding, with good rigidity and big handling space. The machine sets three die-stations (among them, one is the marking die-station), automatic switching die-stations.
Clamping system can adapt to different work piece, with zero baffles as datum mark, and work piece supported by rolling-ball working table.
Axis X & Y action should be controlled by servo motor and ball-screw driving, and double-axis CNC system controls the position of punching, so as to make the whole machining process automatically; operator may input the sizes of work piece to computer for repeated calling program in the future.
Important functional components adopt modular assembly, easy to repair it.
Company Introduction:
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Our Service:
FAQ
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
