Plastic Machine for High Capacity Cleaning of Bottles and Drums

Product Description

Applicable Material:
PE/PP bottles, Drums, Lumps, Pipes, Basket, Crates, household bottles, plates, etc.
Introduction
Welcome to the future of waste hard plastic recycling with YILI Machinery's high-performance washing line! Specially engineered to handle a variety of hard plastic materials like PE or PP bottles, IBC tanks, pipes, lumps, flakes, jugs, blocks, and die head material, our state-of-the-art production line is a testament to cutting-edge technology and exceptional efficiency. With a comprehensive system that includes shredders, crushers, friction washers, floating tanks, and centrifugal dryers, we offer a versatile capacity ranging from 300 to 5000 kg/hr. Our advanced washing line guarantees precise and efficient decontamination of waste plastics through innovative cold and hot washing systems, ensuring the final products achieve exceptional quality. These can be used independently or blended with other materials for reprocessing, making sure every plastic is given a sustainable new lease on life.
Technical Parameters

Model	Capacity (kg/hr)	Power installed (Kw)	Water consumption (ton/hr)	Manpower
HQX500	500	160	0.5	3
HQX1000	1000	220	1.2	3
HQX2000	2000	350	3	4
HQX3000	3000	410	4	4
HQX5000	5000	500	5	6

Tech Features & Advantages
This entire production line boasts automatic control with a streamlined process, delivering high production efficiency and outstanding cleanliness.; Expertly designed to separate mud, sand, and other impurities from films and bags, ensuring unparalleled purity.; Equipped with pre-treatment systems like pre-washers and label processors, it significantly enhances the quality of the final product.; Features a high-capacity dewatering machine capable of processing up to 5000 kg/hr, ensuring maximum efficiency. The innovative floating tank design guarantees not just thorough cleanliness of washed materials, but also facilitates easy discharge of dirty residues via hand valves or pneumatic valves.; Offers easy maintenance, reduced energy consumption, and a long lifespan, providing incredible value and reliability.
Main Machines For the line
Belt Conveyor
Available in both light and heavy-duty variants, our belt conveyors are equipped with a gear box motor and side walls to prevent material spillage. An optional metal detector enhances operational safety, making it a robust choice for efficient material handling.
Shredder Perfect for large raw materials like big plastic drums, tanks, lumps, and die head material, our shredders offer preliminary grinding before further crushing. Post-shredding, materials undergo a second crushing phase, reducing them to sizes below 12mm for optimal cleaning. YILI provides a versatile range of shredders, each tailored to different capacities and customer requirements.
Crusher
Our crushers reduce material into smaller sizes while using water to clean and cool the blades during operation. This module efficiently processes large materials into smaller pieces, enhancing washing results and facilitating easy packaging of the final product.
Frication Washer Engineered for high-speed washing with water, the friction washer effectively removes contaminants, dirt, and grease from materials. Post-washing, materials proceed to the floating tank for additional cleaning, ensuring a pristine final product.
Floating Tank
Our floating tank expertly separates sediment and metal from the material using washing wheels of various designs, controlled by inverters for optimal speed. The bottom magnetic valve ensures timely discharge of dirt, made from durable stainless steel for long-lasting performance.
Centrifugal Dryer The horizontal centrifugal dryer offers high-performance drying for plastic flakes with minimal energy usage. Its self-cleaning grid mesh, controlled by a timer, provides dual washing and drying functions for maximum efficiency.

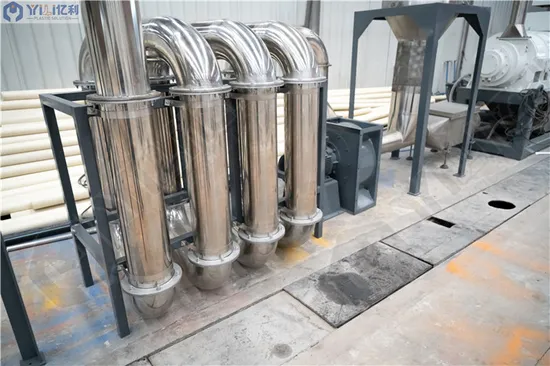

Hot Air Pipeline Heating
Crafted from stainless steel, this pipeline delivers hot air for further drying, significantly reducing the moisture content within materials and ensuring a superior quality output.
