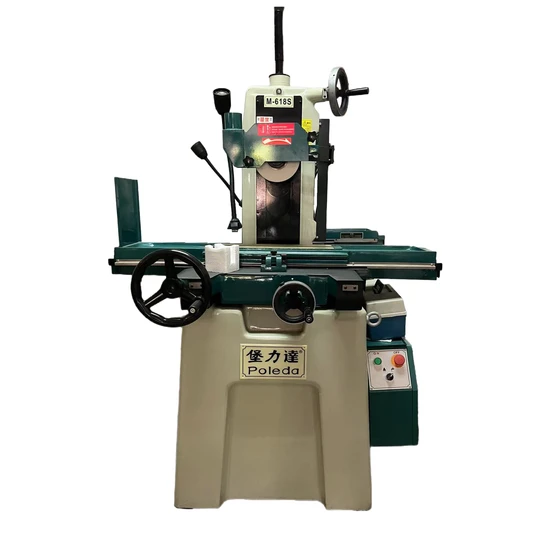

Premium M618 High Precision Hand Surface Grinding Machine

Product Description

Product Description
Exceptional Features of the Surface Grinding Machine:
Unmatched Efficiency: Our surface grinder boasts a high spindle speed, ensuring rapid processing and significantly enhanced productivity.
Extended Durability: Expertly designed and meticulously manufactured, our surface grinding machine guarantees a long service life, providing enduring performance.
Cost-Effective Maintenance: With an easy-to-maintain design, our surface grinding machine ensures minimal maintenance costs, saving you time and money.
Effortless Operation: Simplified controls make our surface grinding machine easy to operate, reducing training time and associated costs for operators.
Safety Assured: Engineered with high safety standards, our surface grinding machine ensures the utmost protection for operators, fostering a secure working environment.
Robust Structural Integrity: Constructed primarily from cast iron, known for its excellent shock resistance, wear resistance, and thermal stability, our machine's bed, column, workbench, grinding wheel, and grinding wheel frame offer unparalleled rigidity and stability.
Versatile Applications: These outstanding performance characteristics make our surface grinding machine indispensable in industrial production, ideal for grinding a diverse range of surfaces and complex forms without mechanical feed.

Product Parameters
Mechanical Properties
Machine Structure: Meticulously crafted from high-grade cast iron, the main castings of our machine undergo precise annealing treatment to eliminate internal stresses. This ensures unparalleled precision, robust rigidity, and an extended machine lifespan. Slide Way: Featuring a sophisticated double V slide way, both horizontally and vertically, enhanced with wear-resistant resin TI URCITE-B and precision shovel flower, our machine guarantees smooth, wear-resistant sliding. It's impeccably suited for all forming and grinding tasks.
Cylindrical Straight Spindle: Engineered with a P4 ultra-precision angular roller bearing, our machine delivers low noise and vibration-free operation. This design ensures substantial torque even at high speeds, making it perfectly suited for heavy cutting as well as a variety of forming grinding operations.
Automatic Lubrication System: Equipped with a cutting-edge circulating automatic lubrication system, our machine ensures optimal performance. The lubricating oil begins its cycle the moment the main spindle starts, providing forced lubrication to each screw and slide. This significantly reduces slide wear. Additionally, an oil mirror installed above the column allows for real-time monitoring of the lubrication condition.

Product name	Surface grinding machine
Product model	M618
Product technical parameters
1 Table size		150*450MM(6*18'')
2 Maximum grinding length		475MM(18-3/4'')
3 Maximum grinding width		185MM(6-1/3'')
4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
5 Standard disk size		150*350MM
6 Left and right feed/manual stroke		485MM(19'')
7 Front and rear feed/manual stroke		180MM(7'')
8 Hand wheel feed (per turn)		5MM(0.2'')
9 Hand wheel feed		0.02MM(0.001'')
10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
12 Spindle speed (50/60HZ)		2800RPM
13 Spindle motor		1.5HP
14 Weight (approximate)		850kgs
15Machine size (L * W * H)		1350*1050*1850MM
Grinding machine configuration	Accessories name and specification	Quantity
Standard parts for machine tools	1,Grinding wheel and flange	1
	2,Wheel removal wrench	1
	3,Hexagonal wrench	1
	4,Leveling screws and foot pads	1
	5,Grinder guide oil	1
	6,Toolbox and adjustment tools	1
	7,Hanging rings	1
	8,Grinding wheel	1
Special parts for machine tools	9,Grating electronic ruler	1
	10,Permanent detail disk	1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The Minimum Order Quantity (MOQ) depends on your specific requirements for color, logo, and other customizations. For some standard items, which we have in stock, the MOQ is just 1 set.
2.How do you control the quality of the products?
A. Quality is our top priority. We have stringent quality control measures in place to ensure that our standards are consistently met. Our principle is to provide customers with superior quality, competitive pricing, and excellent service.
3.What are the main products of your company?
A: We specialize in the manufacture of various machines, including CNC Machines, Lathes, Milling Machines, Grinding Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, Sawing Machines, and many more.
4. What are your trade terms?
A: We accept a range of trade terms including Ex-works (EXW), FOB (Free On Board),
CFR (Cost and Freight),
and CIF (Cost, Insurance, and Freight)..What are your payment terms?
A: Our payment terms are: T/T (Telegraphic Transfer), with 30% initial payment upon order placement and the remaining 70% balance before shipment.
6.What CNC systems do you use?
A: We offer a variety of CNC systems including FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN. The choice depends on your preference.
7.How can I choose the most suitable machines?
A: Please send us the drawings and details of your products and their applications. Our experts will recommend the most suitable machines for your needs.
8.What kind of packaging do you offer?
A. We typically use plywood cases to ensure that all goods are delivered in perfect condition. Customized packaging is also available upon request.
9.Can your plant do OEM?
A: Yes, we can provide both OEM and ODM services to meet any customer requirements.
10.How about the warranty?
A: Our products come with a one-year warranty after delivery. Additionally, we offer lifetime service support for our machines even beyond the warranty period.
