Automatic Toilet Tissue Paper Making and Converting Machine

Product Description

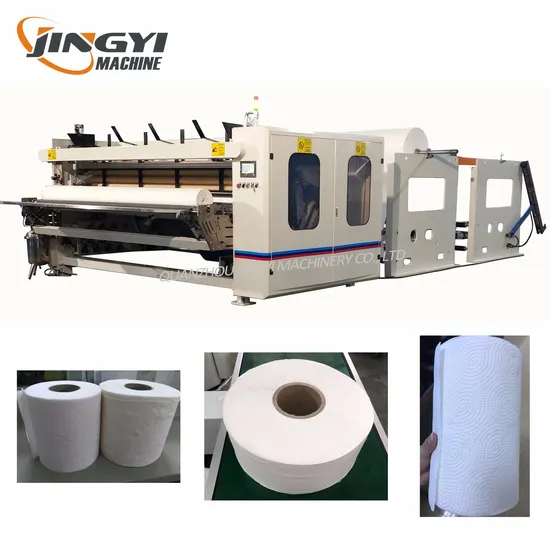

Automatic toilet tissue paper making and converting machine
Main Technical Parameter:

Max jumbo roll width	1750mm (other size can be ordered) Can order from 1200mm to 2800mm
Max jumbo roll diameter	φ1100mm(for bigger size can be ordered)
Jumbo roll inner diameter	3inches (76.2mm)
Finished products diameter	φ80-150mm
Perforated distance	100-150mm (other size can be ordered)
Production speed	0~180m/min
Machine power	7.5~22kw (depends on machine model)
Roll core unit	With or without roll core
Jumbo roll stands	1~3 stands (standard is 2)
Embossing unit	Single embossing, double embossing (steel to rubber roller, steel to paper roller, steel to steel roller)
Jumbo roll loading	With air cylinder loading
Parameter setting	Man-machine interface operation, Touch screen
Machine overall dimension	3500*2500*1500~6000*3500*1500mm
Machine weight	1500~4500KG (approximately)
Remote controlling	Depends on customer
Lamination unit	Can be ordered
Colorful lamination	Can be ordered

Equipment Description:
1. This is an automatic rewinding machine for toilet paper and kitchen towel, with the function of roll core auto feeding, embossing, glue lamination, perforating, trim sealing and so on. Can also do kitchen towel with lamination unit, also can do with colorful lamination. 2. This machine is designed and made according to CE certificate standard, with safety safety-guard door, emergency stop and other safety devices, to protect operators. 3. With automatic roll core feeding unit, without manual roll core feeding, after rewinding will automaticly push out the log, and immediately rewind again. Can adjust the specification of the roll core easily. 4. With international advanced PLC programmable controlling technical, man-machine interface operation table. The production data and technical parameters show on touch screen. 5. With high precise perforation blades, lower noise, clearer perforation, can adjust the perforating distance with bigger range. 6. Jumbo roll tension controlling system, Pneumatic lifting the jumbo roll; 7. Can use the steel to steel embossing unit for point to point embossing rollers, make the paper softer, and double layers match well. 8. This equipment is durable and wearable with simple operation and maintaining.
About Us:
Quanzhou Jingyi Machinery Co.,ltd is professional manufacturer for paper machines:
1) Toilet Paper Machine and kitchen towel machine (1.2m--2.8m width of jumbo roll);
2) Facial Tissue Machine (2-14 lanes);
3) Napkin Paper machine;
4) Hand Towel Paper Machine;
5) Handkerchief Paper Machine;
6) All kinds of Paper Cutting and Packing Machine.
Our workshop:
The package and shipping:
Our Service:
Pre-Sale Services: We will reply your inquiy within 24 hours. According to your actual situation and budget, we will provide professional consultation and best solution with strong technical support.
After-Sales Service:
1.We will send the engineer or technician to your factory for installation, debugging and training the workers. Also welcome you come to our factory for learning the machine operation.
2.Warranty: One year guarantee, service for ever. Our technical team will give you 100% rest assured global presence service if necessary.
3.Wearing parts of machine will be sent to customers with a good preferential price.
