16-630 mm PVC CPVC UPVC / HDPE / LDPE / PE PP PPR Conduit Pipe /Hose Twin& Single Screw Extruder / Extrusion Plastic Making Machine for Water/ Gas Supply Price

Product Description

PVC Pipe Manufacturing Machinery / PVC Pipe Extruder Machine
Product Description
Produce process for PVC Pipe :
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker
Produce process for HDPE PP PE Pipe :
Raw material +master batches → mixing → vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould → vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker
Main Composition

Machine List for PVC Pipe Machine	Quantity
1.SJSZ-XXX conical twin screw extruder (Equipped with automatic feeding unit)	One set
2.Die and Mold	One set
3.Vacuum calibration unit	One set
4.Haul-off unit	One set
5.Cutter Unit	One set
6.Stacker	One set
Machine List for HDPE Pipe Machine
1. SJ 65/33 single screw extruder	One set
2. Die head & mould	One set
3. Cacuum calibration tank	One set
4. Spray cooling tank	One set
5. Haul-off unit	One set
6. Cutter Unit	One set
7. Stacket	One set
8. Winder	One set
Optional auxiliary machines for your choice
1.Printer	One set
2.Mixer	One set
3.Crusher	One set
4.Milling machine	One set
5.PVC pipe belling machine	One set

Technical parameter for PVC Pipe Machine

Diameter(mm)	16-40dual	20-63dual	20-63	75-200	160-315	315-630
Extruder mode	SJZ51/105	SJZ65/132	SJZ51/105	SJZ65/132	SJZ80/156	SJZ92/188
Extruder power (kw)	18.5AC	37AC	18.5AC	37AC	55AC	110DC
Max lineal speed (m/min)	0.5-10	0.5-15	0.5-10	0.5-8	0.5-6	0.5-4
Max capacity (kg/h)	120	250	80-120	180-250	280-350	500-600
Installation area			24*2.8*2.0m	30*2.8*2.2m	35*3.0*2.4 m	36*3.0*2.4 m

Technical Parameters for HDPE Pipe Machine

Max Dia. Of pipe(mm)	75	125	250	630
Main machine	SJ65/30	SJ75/30	SJ90/30	SJ120/30
Motor power(kw)	60	75	160	260
Motor type	Direct current model	Direct current model	Direct current model	Direct current model
Max. capacity(kg/h)	160	260	400	900
Traction speed(m/min)	0.5DRM8	0.3DRM4	0.2DRM2	0.1DRM1
Max. traction(N)	10000	15000	30000	40000
Cutting type	Disc type cutting	Disc type cutting	Planet cutting	Planet cutting
length(mm)	22000	34000	44000	58000

Detailed Photos

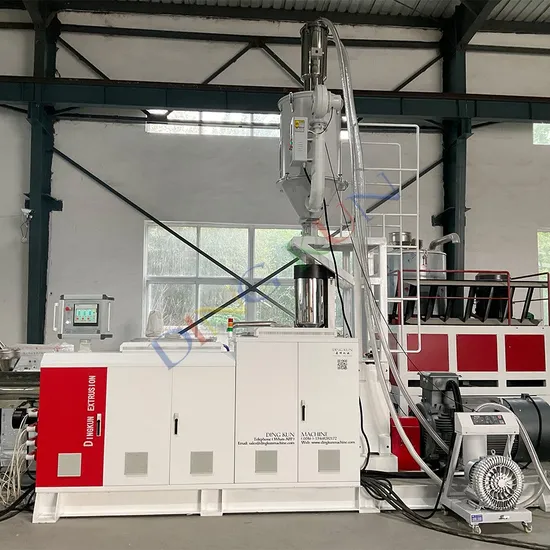

PVC Pipe Machine Pictures
HDPE Pipe Machine Pictures
Packaging & Shipping
Certifications

Company Profile
FAQ
1. Quality Control Management
Q: Is there quality control on all production lines?
A: Yes, all production lines have adequate quality control
Q: Do the QA/QC inspectors work independently from the production line?
A: Yes
Q:How many QA/QC inspectors in total?
A: 4
Q: Number. of Employees in Each Production Line
A: Supervisor 1 ; No. of Operators 29 ;No. of In-line QC/QA 2
2.Supplier Management
Q:Does the company have a supplier assessment procedure?
A:Yes
Q:Does the company have an updated list of approved suppliers?
A:Yes
Q:Does the company establish and implement a standard procedure for purchasing contract review and approval?
A:Yes, with written standard procedures
Q:Does the company keep its supplier assessment reports?
A:Yes, with written standard procedures
Q:Does the company keep its supplier assessment reports?
A:Yes, assessment reports are available for the last 1-3 years
Q:Are the company's purchasing documents sufficient to ensure product safety control and their customers' requirements?
A:Yes, the purchasing document includes all the information required
Q:Is there a procedure to conduct random product inspections after final packaging?
A:Yes, with clear standard and written inspection records
Now we have machines in stock,sincerely invite you to vist our factory! Also you can contact me for machine's running video.
