5 Gallon Water Filling Packing Machine

Product Description

600BPH Barrel drinking water filling line
Production line main device technical description
1.outside bottle brushing machine
brief
The bottle goes into the outside cleaning machine by the action of conveyor and bottle closed to the main rotate brusher .the direction of main brushing rotate is opposite with the bottle and bottle bottom brusher rotate direction . the bottle finish revolution one circle ,self rotate running . washing pump offer the water or cleaning liquid to every brusher. And the liquid can be recycled because of the bottom water tank . the bottle in the outside brushing machine rotate 270°.then goes into the spray room. After spraying ,the bottle carried out by conveyor .the spraying room water can from the same washing pump , and the water also can be recycled to use .
main technical parameters : pneumatic element adopts airtac products ac contactor use Siemen or Shneider products conveyor use SS type adopts SS 304 or 316 rotate bearing has the good water proof structure brusher motor;0.75kw wheel motor :0.75kw washing pump:0.37kw conveyor motor:0.27×3kw cleaning liquid heating device:6kw
2.automatic bottle loading
The bottle from outside brushing machine goes into the washing main machine by the action of cylinder

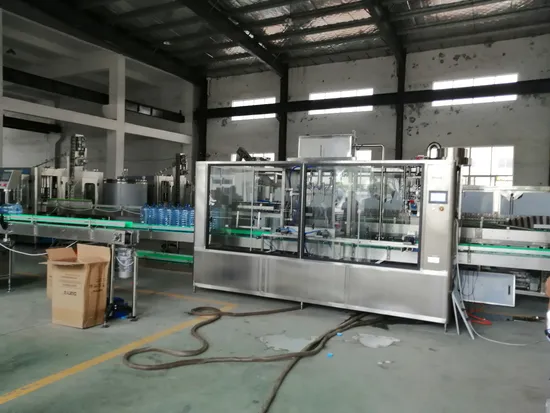

3.QGF-600 barrel filling line
Briefing
QGF-600 barrel filling line as the central facility is specially designed for 5 gallons barreled drinking water production line, which is ideal for production of mineral water, distilled water and purified water. The use of top quality stainless steel guarantees its high-performance resistance of corrosion and easiness of cleaning. With major electrical components coming from SIEMENS and OMRON, and original components for gas path imported from AIRTAC, combined with interior and exterior spray nozzles for cleaning barrels provided by know-how expertise of American spray companies, this machine is of compact design, high efficiency, accurate and sensitive response and high automation level to ensure its stability and reliability as an integrated (machine, electricity and gas) full-automatic barrel filling line.
main technical parameters model:XGF-600 filling heads:4 filling bottle:5gallon bottle size:φ276×490 capacity:600BPH Power supply:380V,50HZ; Max. Power consumption. Since various units start in an intermittent manner, Max. power consumption in normal work is only 3.5KW. water consumption :filling9T/H;(heat)lye washing2T/H(recycled using);pure water washing2.25T/H The rinsing process includes 12 passes of procedures: 1. Pre-rinsing; 2. and 3. Rinsing with alkali liquor; 4. Dripping water; 5. and 6. Rinsing with water; 7. Dripping water; 8. and 9. Disinfectant solution; 10. and 11. Finished water; 12. Dripping water. Structure type;Intermittent transmission by gears and racks; chain gland. outside dimension (mm):5000*1200*2200 configuration introduction the main parts of the machine adopts imported , the washing nozzle use the copy America technical products intelligentize manage ,OMRON computer control ; adopts Siemen electronic component imported Airtac pneumatic element all sets of the machine adopts food grade special SS the machine have automatic cap sorting ,sending system The machine have failure self protect device
5.light inspection device Light inspection box adopts SS shell , the light is suitable . it fits for the nation Health standard and easy seeing the sundries in the bottles and other granule 6. shrinking machine
The shrinking machine temperature can be adjust ,it fits for many kinds of film ,different speed .it adopts pyrogenic material , less consumption .
7. conveyor
All the conveyor drive by reduction box ,in order to reduce the damage of bottles , it adopts inlet plastic conveyor ,outlet SS conveyor
8.electrical control system
Computer control all system running , easy for maintain and operate and instruction Component adopts famous brands like Shneider , mitsubishi.romon products
