High Efficiency H13 Air Filter Deep Pleated HEPA Filter Secondry Filter

Product Description

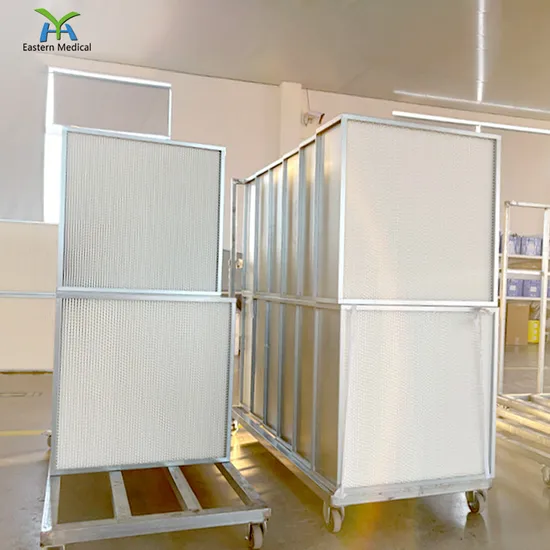

GBH01 Deep-pleat high efficiency filte
Product Introduction:
High efficiency filters with partitions are divided into paper partition high-efficiency filters and aluminum foil partition high-efficiency filters
Filter and high temperature resistant partition filter.
Principle of high-efficiency air filter with partition: using partition design and corrugated partition
Can accurately maintain the spacing between pleats and maximize the use of filters under minimal pressure
Material. When bending the filter material, there are two creases that create a wedge-shaped box at the end of the partition
The pleated layer and wedge-shaped box pleated layer can prevent damage to the filter material;
Performance characteristics:
1.High efficiency (designed to capture particles larger than 0.5 μ m)
2.Flow resistance is small
3. Large dust holding capacity
4. Good wind speed and performance
Scope of use:
1.High level purification equipment
2.End filtration components of purification system
3. Local purification equipment and clean rooms
Material and usage conditions

Outer frame	Aluminum alloy, galvanized sheet, aluminum plate frame
Partition material	Offset paper, aluminum foil
filter material	glass fibre
Sealing strip	Flame retardant material
Using the highest temperature	80ºC
Use maximum humidity	80ºCRH

Common specifications:

High efficiency filter with divider
Levels Class	Size Size(mm)	Rated air volume (m/h)Rated air flow	Initial resistance (Pa) Initial resistance	Surrested final andinitial resisance (Pa) suggested final andinitial resistance
	W'H'D
99.99% (H13) 99.999% (H14)	320X320X220	500	220	450
	484X484X220	1000	220	450
	630x630X220	1500	220	450
Note: The air volume is different under different wind speed, special size can be customized according to customer's URS.

Kind reminder: Customization can be processed according to customer specifications and requirements.
