Grain Wheat Cereals 4rows Hot Sale Mini Wheat and Rice Corn Maize Small Philippines Paddy Corn Lk6.0-B1 Corn Rice Combine Harvester
| US$36,000.00-37,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YZP-4FD
Application
Cotton, Rice, Corn, Fruit, Wheat, Soybean, Tubers, Straw
Power Source
Diesel
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Soft Shaft
Portable Harvester Type
Side Hanging Type
Certification
QS, GMP, ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture, Forestry
Warranty
12 Months
Model
Yzp-4fd
Name
4yzp-4fd Self Propelled Corn Harvester
Structural Style
Wheeltype/Ear Picking/Peeling/Straw Returning to F
Engine Model
Yca07p280-T400
Engine
Yuchai
Row Spacing
600mm
Min.Ground Clearance
240mm
Min Ground Cleaqrance
330mm
Track Ground Pressure
≤35kg/HEC
Engine Manufacturer
Famous Manufacturer(Changchai)
Engine Type
Six-Cylinder, in-Line, Four-Stroke, High Pressure
Working Rows
4
Working Width
2380mm
Working Speed
2-6km/H
Working Efficiency
0.4~0.65hm2/H
Transport Package
Large Cabinet
Specification
5cube 3500kg
Trademark
YZP-4FD
Origin
China Shandong
HS Code
8701921000
Production Capacity
1000pieces/Year
Product Description
Combine Harvester Main Technical ParametersAdvantages:
Compact structure, excellent performance,
High threshing ability, low broken rate. Low lost rate
Thorough clearance with double shakers for re-threshing
Famous brand engine with large power and stable performance
Main specifications:
| 4YZP-4FD Corn harvester technical parameter | |||
| No | Item | Unit | Design Value |
| 1 | Name | / | 4YZP-4FD self propelled corn harvester |
| 2 | Structural style | / | Wheeltype/ear picking/peeling/straw returning to field |
| 3 | Engine Model | / | YCA07P280-T400 |
| 4 | Engine | / | Yuchai |
| 5 | Engine type | / | Six-cylinder, in-line, four-stroke, high pressure common rail |
| 6 | Engine power | kW | 206 |
| 7 | Engine RPM | r/min | 2200 |
| 8 | Dimension(L×W×H) | mm | 7120×2780×3400 |
| 9 | Total weight | kg | 9220 |
| 10 | Working rows | Row | 4 |
| 11 | Row spacing | mm | 600 |
| 12 | Working width | mm | 2380 |
| 13 | Min.ground clearance | mm | 240 |
| 14 | Working speed | km/h | 2.0~6.0 |
| 15 | Working efficiency | hm2/h | 0.4~0.65 |
| 16 | Fuel consumption | kg/hm2 | ≤35 |
| 17 | Placement of ear conveyor | / | Middle |
| 18 | Ear conveyor type | / | Chain scraper |
| 19 | Ear picking mechanism type | / | Snapping roller |
| 20 | Snapping roller | / | 8 |
| 21 | peeling mechanism | / | Rubber Roller |
| 22 | No.of peeling rolls | / | 20 |
| 23 | Cutting table | / | Horizontal type |
| 24 | No.of Fan | unit | 1 |
| 25 | Fan type | / | Centrifugal+axial flow pump |
| 26 | Fan diameter | mm | Φ660+Φ220 |
| 27 | Unloading type | / | Hydraulic side-dump |
| 28 | straw returning machine type | / | flail chopper |
| 29 | Position of straw returning machine | / | center |
| 30 | width of straw returning machine | mm | 2300 |
| 31 | Cabin type | / | General |
| 32 | Transmission mechanism type | / | Mechanical+HST |
| 33 | Drive type | / | Two-wheel drive |
| 34 | Drive mode (F/R) | F: Mechanical + hydraulic drive R:None | |
| 35 | Brake type (F/R) | / | F: Disc type/R: drum type |
| 36 | Wheel base | mm | 3000 |
| 37 | Guide wheel tread | mm | 1700 |
| 38 | Drive wheel tread | mm | 1920 |
| 39 | Guide tire | / | 400/60-15.5 |
| 40 | Driving tire | / | 15R24 |
Product advantage
Short ones can be harvested without rows, which is suitable for early and mid-term corn plants.
The long ones are harvested in opposite rows, which is suitable for mid- to late-stage corn plants.

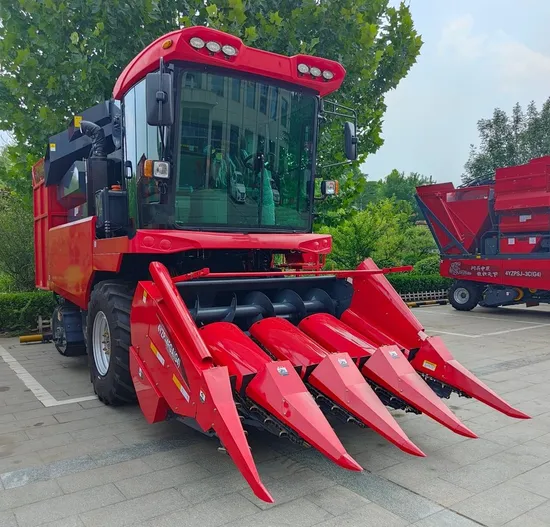

Picture show
Company proflie
Lingke Holding Group is a manufacturing enterprise engaged in R&D, production and sales of high-end non-road machinery and equipment. It was established in 2013. The total planned area of the group is more than 1,00 mu. It is a key investment attraction of the municipal government, a major
provincial project, and a priority project for new and old kinetic energy.
