Grinder Machine for Metal

Product Description

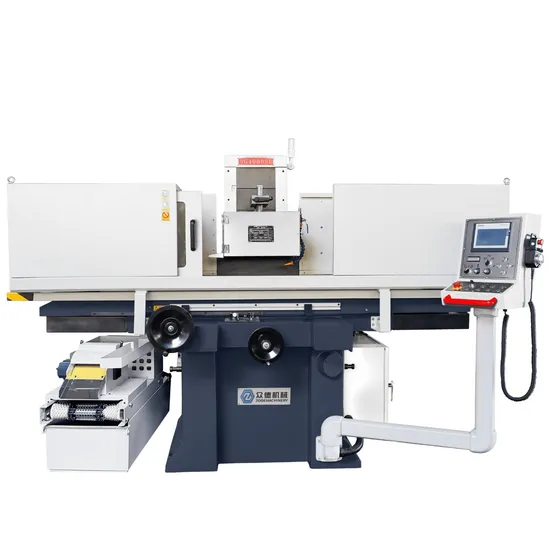

1. Pictures
2. Parameters

Parameters		Unit	SG40100S	SG40100SD
Working Surface of Table		mm	400×1000 (16"×40")	400×1000 (16"×40")
Max.Table Travel		mm	1050	1050
Max.Cross Travel		mm	440	440
Distance Between Table Surface and Spindle Center		mm	580	580
Max.Table Load		kgs	700	700
T-Solt(Number×Width)		mm	3×14	3×14
Table Speed		m/min	5~25	5~25
Crossfeed Handwheel	1gard	mm	0.02	0.02
	1 rev		5	5
Automatic Crossfeed of Saddle		mm	0.01~12	0.01~12
Automatic Crossfeed Rate		mm/min	10~800	10~800
Power Cross Feed		mm/min	1500	1500
Grinding Wheel Dimensions		mm	355×40×127	355×40×127
Spindle Speed	50HZ	rpm	1450	1450
	60HZ		1740	1740
Vertical Handwheel	1gard	mm	0.001	0.001
	1 rev		0.5	0.1
Automatic Down Feed Rate		mm	0.002/0.004/0.006/0.012/0.02/0.03/0.04/0.05	0.001~0.1
Power Head Increment		mm/min	400	1000
Spindle Motor		kw	5.5	5.5
Floor Space		mm	3600×2600	3600×2600
Packing Dimensions		mm	2990×2225×2195	2990×2225×2195
Net Weight		kgs	3150	3150
Gross Weight		kgs	3450	3450

3. Standard Accessories

1	Grinding wheel	2	Wheel flange
3	Wheel balancing base	4	Wheel balancing arbor
5	Extractor	6	Diamond dresser
7	Leveling pad	8	Anchor bolt
9	Tool box with tools	10	Electric chuck

4. Feature SD stands for high configuration program control, three-axis automatic, longitudinal hydraulic drive,cross feed and vertical axes are driven by servo motors, and equipped with touch screen to set parameters(Automatic down feed, the minimum down feed is 0.001mm, and has the functions of rough grinding, fine grinding, automatic lifting and spark out grinding).
[hydraulic automatic longitudinal feed, electronic automatic cross feed(use servo motor),incremental auto down feed (use servo motor)]
1. Well designed cast iron structure provides excellent dampening
2. Flange mount spindle cartridge for superior side grinding rigidity
3. Grinding spindle features low-maintenance preloaded high precision angular ball bearings(NSK P4 grade)
4. "V" and flat type guide way which precision hand scrapped turcite saddle ways for smooth and long lasting performance
5. Table guideways are hardened, ground and counter-laminated with PTFE to ensure high wear-resistance
6. Centralized automatic lubrication system ,supplies oil to guide-ways and lead-screws as the machine operates. This system
ensures all the critical components are lubricated with the right amount of oil at all times
7. Separate hydraulic tank prevents heat and vibrations from being transferred to the machine
8. Electric components and functional modules are well arranged and packed in the electric cabinet, making maintenance and
trouble-shooting easily accessible
9. Safety 24V control circuit power
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Main Configuration of Grinding Machine
1. Spindle motor: Use ABB brand which from Sweden.
2. Spindle bearing: Use NSK brand P4 grade precision ball bearing which from Japan.
3. Cross screw: Use P5 grade precision ball screw.
4. Main electrical components: Use S C H N E I D E R brand.
5. Main hydraulic components: Use brand from TAIWAN.
6. Cross feed and down feed servo motor: Use SIEMENS brand.
