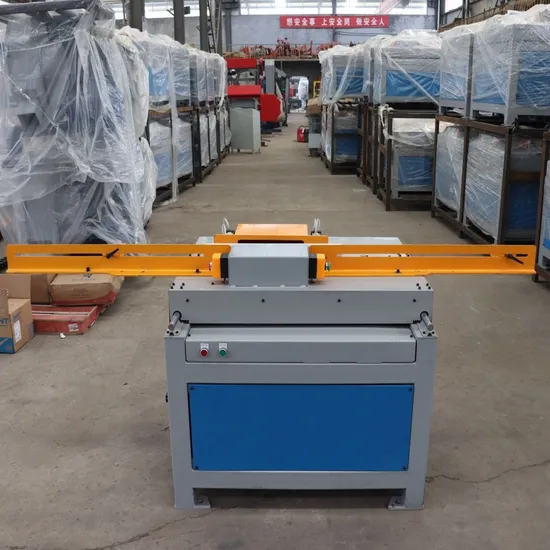

Wooden Pallet Wood Notching Equipment Grooving Slotting Machine
Basic Info.
Model NO.
WS-1
Spindle Layout
Horizontal
Spindle Number
Double-Spindle
Feed Mode
Mechanical
Controlling Mode
Artificial
Certification
ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Engineers Avaliable for Service Overseas
Name
Pallet Notcher
Power
30kw
Arc Knife
24*2
Square Knife
84*2
Capacity
1800 PCS/Hour
Wood Length
1400mm
Wood Width
90mm
Transport Package
Customized
Specification
Customized
Trademark
Customized
Origin
China
HS Code
8465910000
Production Capacity
200 Sets Per Year
Packaging & Delivery
Package Size
120.00cm * 110.00cm * 120.00cm
Package Gross Weight
400.000kg
Product Description
Product DescriptionStringer Wood Pallet Notching Notcher Machine
Open groove the bottom beam of American wooden pallet
Easy to clean and maintain,High Safety,
Manual input the beam and auto Push the beam
| Model | WS-1 | WS-2 |
| Power | 15kw | 30kw |
| knife | Alloy | Alloy |
| Capacity | 600-800pcs/h | 1800pcs/h |
| Beam length | 1800mm | 1400mm |
| Beam width | 160mm | 90mm |
| Beam thickness | 40-60mm | 40-60mm |
| Slot depth | <45mm | <45mm |
| Slot width | 200-230mm | 200-230mm |
| size | 1200*1100*1200mm | 2300*1300*1300mm |
| weight | 400kg | 1000kg |
Related Machines
Pallet Dismantler
| Table Width | 1700MM |
| Table Length | 1150MM |
| Cutting Thickness | 5-150MM |
| Saw Wheel Diameter | 600MM |
| Motor Power | 7.5KW |
| USA Starrett Bi Metal Blade | 6850*41*1.27MM |
| Weight | 700KG |
| Overall Size | 2800*1500*1700MM |
Pallet Crusher
| Feeding Inlet | 1350*230mm |
| Blade Shaft Diameter | 450mm |
| Blade Quantity | 16 |
| Motor Power | 37KW |
| Speed ratio of reducer | 1:12.64 |
| Capacity | 60 Pallets/Hour |
| Packing | 3220*1920*2200MM |
| Weight | 3100KG |
Automatic Stringer pallet nailing machine
| Model | 1300 |
| Wood pallet length | 600- 1300mm |
| Wood pallet width | 800- 1300mm |
| Working mode | Automatic feeding and stacking |
| Operation mode | Touch screen |
| Operational mode | Pneumatic operation |
| Voltage and power | 220V/ 2kw Servo motor |
| Air pressure | 0.8MPA |
| Tank size | 0.2 cubic |
| Nail gun speed | 7 times /second |
| Production effciency | 1-2pcs /min |
| Apply a nail | Less than 90mm |
| Number of nail guns | 3P/ 4P |
| Weight | 2000kg |
| Size | Host machine 1660*1970*2217mm Stacking 2945*2054*1410 |
American Stringer Pallet Nailing Bench
| Model | 1700 | 3400 |
| Wood pallet length | 600-1300mm | 700-1500mm |
| Wood pallet width | 800-1700mm | 900-3400mm |
| Operational mode | Pneumatic operation | Pneumatic operation |
| Air pressure | 0.8MPA | 0.8MPA |
| Production Capacity | 30-40pcs /h | 20-30pcs /h |
| Number of beams | 3/4 | 5/6 |
| Weight | 440kg | 840kg |
| Size | 2250*980*1900mm | 4050*1050*2100mm |
Euro Pallet Nailing Bench
| Model | 1600 | 3300 |
| Wood pallet length | 600- 1300mm | 700-1500mm |
| Wood pallet width | 800- 1600mm | 900- 3300mm |
| Air pressure | 0.8MPA | 0.8MPA |
| Production capacity | 30-40pcs /h | 30-40pcs /h |
| Number of beams | 3/4 | 5/6 |
| Weight | 650kg | 950kg |
| Size | 2400*980*1900mm | 4000*980*1900mm |
Semi-Automatic wooden pallet nailing machine
| Model | 1500 |
| Wood pallet length | 600-1300mm |
| Wood pallet width | 800-1700mm |
| Feeding mode | Hand pull |
| Palletizing mode | Automatic |
| Operational mode | Pneumatic operation |
| Voltage | 380V,480V or other |
| Air pressure | 0.8MPA |
| Tank size | 0.2 cubic |
| Nail gun speed | 7 times /second. |
| Production effciency | 1-2pcs /min |
| Apply a nail | Less than 90mm |
| Number of nail guns | 3P OR 4P |
| Palletizing quantity | 10P |
| Weight | 2000kg |
| Overall dimension | 3800*2200*2217mm |
| Package size | 2500*2200*2500 |
Company Profile
Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Our wood pallet machines including:
Pneumatic Nailer (Manual/Automatic,Horizontal/Vertical)
Pallet Dismantling Machine
Pallet Crushing Machine
Pallet Chamfering,Stamping,Cutting,Turning,
Stacking,Conveyor
Pallet Notcher (Single Head/Double Head)
Pallet Boards Cutting,Milling,Stacking,
Block Machine (Crushing,Drying,Glue Mixing,Pressing,Cutting)
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!
