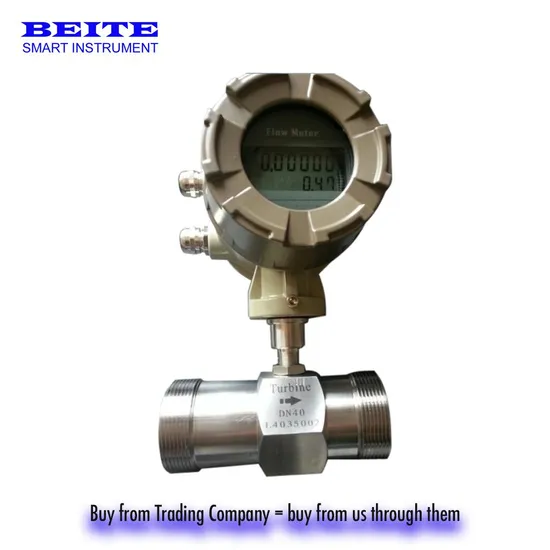

Liquid Water Flow Meter 1inch Turbine Water Flow Meter Flow Measure Flowmeter

Product Description

Product Description Operating Principle:
Liquid flows through the turbine housing causing an internal rotor to spin. As the rotor spins, an electrical signal is generated in the pickup coil. This signal is converted into engineering units (liters, cubic meters, gallons etc.) on the local display where is applicable. Optional accessory modules can be used to export the signal to other equipment.
Upon receipt, examine your meter for visible damage. The turbine is a precision measuring instrument and should be handled carefully. Remove the protective plugs and caps for a thorough inspection. If any items are damaged or missing, contact us.
Make sure the turbine flow model meets your specific needs. For your future reference, it might be useful to record this information on nameplate in the manual in case it becomes unreadable on the turbine. Refer to the nameplate for your customized product's specification.

Detailed Photos
Product Parameters Measuring system

Application range	Liquid: water; diesel; gasoline (1) Without Impurity (2) Low viscosity
Measured Value
Primary measured value	Flow Rate
Secondary measured value	Volume flow

Design

Features
Modular construction	The measurement system consists of a flow sensor and a signal converter. It is available as compact and as separate version.
Compact version converter	N Type: Pulse output without local display
	A Type: 4‐20mA Output without local display
	B Type: Local Display; Lithium Battery Power; No Output
	C Type: Local Display; 24V DC Power; 4‐20mA Output;Optional Function: (1) Backup Power Supply: Lithium Battery (2) Modbus RS485 (3) Pulse Output
Connection	Thread: DN4‐DN50
	Flange: DN15‐DN200 (DIN, ANSI, JIS)
	Wafer: DN15‐DN100
Measurement Ratio	Standard - 10:1; Optional: 20:1
