Ribbon Mixer for Textile Industry for Dye Preparation, Textile Coating, Printing Paste Mixing, Finishing Chemical Mixing:

Product Description

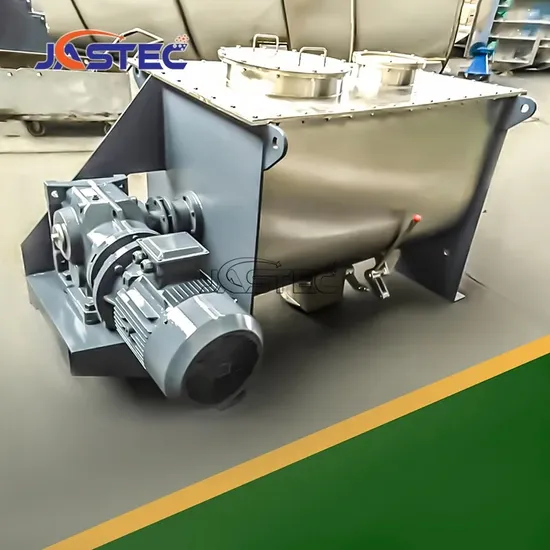

Product DescriptionRibbon Blender is a highly efficient and versatile mixing machine designed for uniform blending of dry granules and powders. Its unique double ribbon structure ensures thorough mixing by moving materials both radially and laterally. The machine is equipped with a center discharge valve for easy operation. Ideal for gentle mixing of various materials, especially in the food, chemical, and pharmaceutical industries. Additionally, an optional high-speed chopper effectively breaks lumps, enhancing blending quality. Whether for large-scale production or fine processing, the Ribbon Blender is the perfect choice.
Applications:
Applications of the plough mixer :
(1) Industrial Powder: Putty powder, Lime powder, Concrete powder, etc.
(2) Pharmaceutical Powder: Coarse powder, Baiyao powder, etc.
(3) Food Powder: Milk powder, Papaya powder, Chocolate powder, Potato flour, etc.
(4) Paint Powder: Polyethylene coating powder, Polyurethane coating powder, Epoxy coating powder, Decorative coating powder, etc.
(1) Industrial Powder: Putty powder, Lime powder, Concrete powder, etc.
(2) Pharmaceutical Powder: Coarse powder, Baiyao powder, etc.
(3) Food Powder: Milk powder, Papaya powder, Chocolate powder, Potato flour, etc.
(4) Paint Powder: Polyethylene coating powder, Polyurethane coating powder, Epoxy coating powder, Decorative coating powder, etc
Main Technical Data

Model	WLDH0.1	WLDH0.5	WLDH1	WLDH3	WLDH6	WLDH8	WLDH10 ~ 30
Maximum workload	60L	300L	600 L	1800 L	3600L	4800L	6000-18000 L
RPM	76	66	41	33	26	26	23/17
Motor power	2.2	5.5	11	22	37	45	55/110
Overall dimensions	1.08X0.758X0.615 ~ 8.5X2.. 8X3.3M
LDH0.1 ~ 20cbm
Net weight/kg	330	955	1400	3300	5300	6800	8900/16000
Discharge/mm	100	350*120	360*120	360*130	500*120	700*120	700/140

Working Principle
The main shaft of Horizontal Ribbon Blender generally adopts two groups of internal and external helical ribbons. When mixing, internal ribbons push the material to two sides of barrel while the external ribbons push the material to the center of barrel to form the cycli cand stagger convection and finally achieving mixing effects. For the materials with poor fluidity, our special design of scrapper which is equipped on the end of main shaft's two sides solves the problems. The discharging valve is designed on the middle ofthe barrel soth at all the material can be completely push to the middle by external ribbons.
The latest WLDH-Blender wins the uniform praisefrom many clients because of the exquisite structuredesign and production process, low faultrate, excellentmixing uniformity and good production efficiency.
In below case, structure for horizontal mixer differs from standard and needed to be specially designed:

1. Raw materials contain agglomerate materiallarger than 5mm.	5. For mixing highly abrasive materlals, anti-abrasive treatment should be done to parts in contact with product.
2. Bulk density of rawmaterials is higher than1.5kg/l.	6. Materials are not allowed to touch matel surface or it is not allowed tohave metl power from friction.
3. Materials are easy to get damp or are not compatible to atmosphere, vacuumization is needed.	7. Temperature higher than 200ºC is required.
4. Compressed air are injected into tank and thus forms pressure.	8. Equipment needs to meet the full load start process.
Not suitable for processing materials which is of low fluidity, eg. paste materials, solid fat. Not suitablefor processing high viscosity materials. Not suitable for processing mixture of which the ratio is lower than 1:1000 Not suitable for processing material which will freeze (becomes solid)in a short time. Not suitable for processing materials without constancy, e.g. explosive materials.

Finished EquipmentBelow aspects decide otherness of Mixer : Raw material of mixer, surface treatment, start with load/non-load, motor power, reducer, sealfor main shaft, design for top cover, discharge unit, temperature control, observation door, spray methods, speed of spray, electricity power, safety measurements etc.Advanced Production TechnologyDrawing Preparation:
JASTEC adopts three-dimensional modeling for the preparation of drawings. The technical department has a number of senior engineers who have been in the industry for more than 15 years to carry out the review and process arrangement.Efficient Sheet Metal Forming Process
JASTEC adopts deep fusion automatic welding robot to replace the traditional P+T automatic welding or manual welding, realizing the single welding molding of the plate within 12mm without beveling, and speeding up the link by more than 50%.Large-scale Machining Equipment
JASTEC adopts 10m heightened heavy-duty horizontal lathe to process the spindle, which ensures that the spindle is realized from the process of one cut without secondary clamping, and improves the efficiency and machining accuracy at the same time.High-Quality Inspection
JASTEC is the only powder mixing equipment manufacturer in the industry that introduces 3D scanning equipment, which can compare 1:1 with the 3D model after scanning the alien structure of the mixing shaft with an accuracy of up to 0.1mm.Packaging & Shipping
