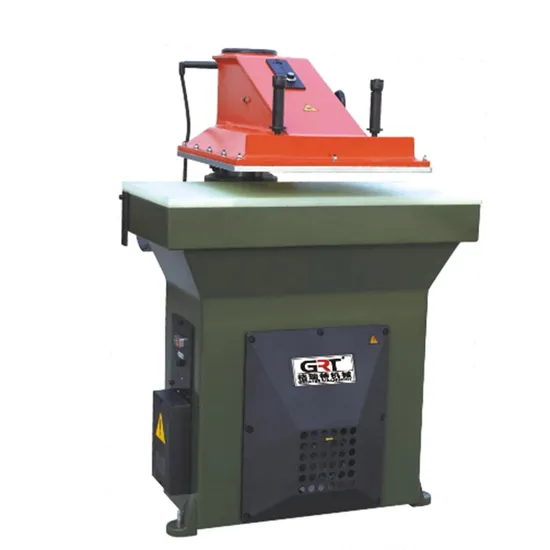

Column Hydraulic Leather Foam EVA Cutting Machine for Shoes Making
Basic Info.
Condition
New
Certification
CE
Power Supply
Hydraulic
Applicable Material
Fabric, Rubber, Plastic, Genuine Leather, Artificial Leather
Function
Cutting Machine
Oil Pump
Made in Taiwan
Valve
Made in Taiwan
Press Switch
Made in Italy
Ring
Made in Italy
Cutting Switch
Made in Germany
Type
Shoes
Automatic Grade
Automatic
Transport Package
Wooden Case
Specification
22T, 27T
Trademark
GRT
Origin
Yancheng China
HS Code
84532000
Production Capacity
2000PCS/Year
Product Description
THE MACHINE INCLUDE PALLET,HYDRULIC OIL,CUTTING BOARD,TOOLS AND SPARE PARTS.
| Model | GRT-S22 | GRT-S27 | GRT-S27K | GRT-S27L |
| Maximum cutting force | 22T | 27T | 27T | 27T |
| Table area | 900×430mm | 1000×500mm | 1000×500mm | 1000×500mm |
| Swing arm width | 370mm | 370mm | 500mm | 610mm |
| Cutting stroke | 90mm | 90mm | 90mm | 90mm |
| Motor power | 1.1KW | 1.5KW | 1.5KW | 1.5KW |
| Packing size | 1050×1000×1500mm | 1100×1100×1600mm | 1100×1100×1600mm | 1100×1100×1600mm |
| N.W(with oil) | 650kg | 930kg | 990kg | 1040kg |
| G.W | 740kg | 940kg | 1000kg | 1050kg |
There are guide video that show how to use machine and english instruction book send to you with
machine. If there is still have any question, we will provide free professinal guide for you until you
could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales
service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your
port name. There will be best shipping freight and machine price send to you.
