Epcn Site Good Helper 8 9 Tons Wheel Excavator

Product Description

Product Description

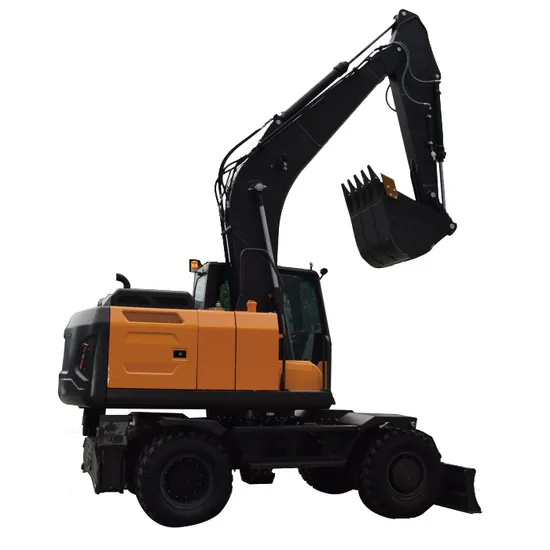

Wheel excavator EP80-W
Wheel excavators are widely used in airports, ports, oil fields, mines, urban and rural construction, irrigation and water conservancy, etc., because of their fast walking speed, flexible and rapid transfer, and rapid replacement of various operating devices. They are called "good helpers" in the field of construction.
Our advantage
International brand engine, strong power, to meet the requirements of efficient operation.
• Precise matching design coupled with advanced energy saving control makes the machine less fuel consumption.
• Low emission, meet the national IV standard.
• The use of new cooling fans and large silencers to make the machine less noisy;
• Adopt advanced turbocharging technology to enhance the plateau adaptability of the machine;
• Unique funnel mouth fan cover, greatly improve the engine air intake and system heat dissipation capacity, to ensure continuous and efficient operation of the machine.

Specifications
(m3)	Bucket Capacity	0.21
(rmp)	Swing Speed	0-11
(°)	Gradeablity	25
(L)	Fuel Tank Capacity	100
(L)	Hydraulic Tank Capacity	90
Engine Model	YUCHAI	4DK25
(KW/rmp)	Power/revolution speed	62.5/2200
(TON)	Operation Weight	8
(MPa)	System Pressure	24

Machine size
(mm)	Dimension Length*Width*Height	7100x2175x2850
(mm)	Cabin Height	2850
(mm)	Axle Base	2400
(mm)	Wheel(track) Distance	1675
(mm)	Minimum ground clearance	2350
(mm)	Rear rotation radius	1940

Working range
(mm)	Max.Digging Height	6380
(mm)	Max.Dumping Height	4700
(mm)	Max.Digging Depth	3900
(mm)	Max.Vertical Digging Depth	2700
(mm)	Max.Digging Radius	6300
(mm)	Min.Swing Radius	2400
(mm)	Max.Dozer Blade Lifting Distance	370
(mm)	Max.Dozer Blade Cutting Distance	110

Certifications

Packaging & Shipping

Company Profile
Made to Move the Dream
EPCN is a collection of professional research and development, production, sales micro excavators, mini excavators, small excavators,Trunk excavators, agricultural excavator and new energy excavator modern enterprise, the company is located in Shanghai city, with thousands of square meters has the international advanced level of modern production workshop and R&D technical center. At present, the company has more than 1800 employees, including 200 professional engineers and technicians, 50 senior engineers and 100 senior technicians.
Company research and development production of EP and JY series hydraulic crawler mini excavator, complete specifications varieties, annual output of 0.8 tons, 23.5 tons of mini excavators more than 5000 sets. In 2020, through the unremitting efforts of the research and development team, China's first pure electric micro-excavator with lithium battery was introduced.
Prior to peer development, superior to peer performance; In the future, we will continue to take "independent innovation" as the source of power, develop towards high-end products, internationalized operation, brand differentiation and other directions, march towards a higher stage and a broader market, and become the creator of world value in the field of equipment manufacturing!Prior to peer development, superior to peer performance; In the future, we will continue to take "independent innovation" as the source of power, develop towards high-end products, internationalized operation, brand differentiation and other directions, march towards a higher stage and a broader market, and become the creator of world value in the field of equipment manufacturing!
Contact us
HOW TO CONTACT EPCN

Exhibition hall address(Physical exhibition hall or official broadcast room orders can enjoy discounts):
Shanghai city:No.1178 Nanfeng road, Fengxian District.,Shanghai City,China.
Anhui Province:No.18, Shengli road,Jinan District., Liuan city,China.
Factory address (For orders of more than 20 sets, please come to the factory for interview):
No.8 Shanbo Road, Jining High-tech Zone, Shandong Province, China.
FAQ
Why choose EPCN?
Q1: How long is the Warranty for EPCN product?
A1: EPCN provides 12 months or 1000 hours for the whole machine from on boarod time.
Q2: How about the delivery time?
A2: Usually EPCN producing time is 7- 30 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: What kind terms of payment can be accepted?
A3: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
Q4: Can EPCN provide customized products? OEM products or ODM products?
A4: Yes, EPCN can provide customized products per your request, both OEM and ODM are acceptable, We do a lots of non-standard products, welcome your special request.
Q5: Could we request our own color for the products?
A5: Yes, of course, you just need to offer us the RAL code
