Klt-Y6PF-Ar0234 V2.0 WiFi Camera 2.3MP Ar0234 Global Shutter Dvp Parallel Interface M14 Fixed Focus Camera Module
| US$55.00-60.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
KLT-Y6PF-AR0234 V2.0
Application
Fixed Focus
Interface Type
Dvp Parallel
Transport Package
Anti-Static Bag in Box
Specification
70.00 x 22.00 mm
Trademark
KLT
Origin
China
Production Capacity
500000 Pieces
Product Description

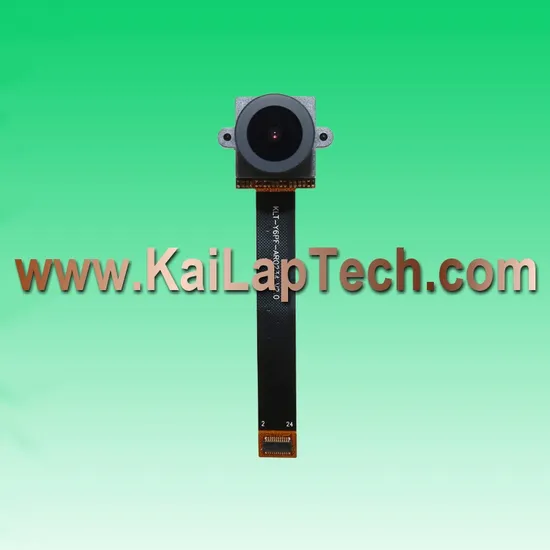

2.3MP AR0234 Global Shutter DVP Parallel Interface M14 Fixed Focus Camera ModuleCamera Module No. KLT-Y6PF-AR0234 V2.0
| Camera Module No. | KLT-Y6PF-AR0234 V2.0 |
| Resolution | 2.3MP |
| Image Sensor | AR0234 Global Shutter |
| Sensor Type | 1/2.6" |
| Pixel Size | 3.0 um x 3.0 um |
| EFL | 3.51 mm |
| F.NO | 2.70 |
| Pixel | 1920 x 1200 |
| View Angle | 127.0°(DFOV) 102.0°(HFOV) 60.0°(VFOV) |
| Lens Dimensions | 15.30 x 15.30 x 16.38 mm |
| Module Size | 70.00 x 22.00 mm |
| Module Type | Fixed Focus |
| Interface | DVP Parallel |
| Auto Focus VCM Driver IC | None |
| Lens Model | KLT-LENS-TRC-2004A1 |
| Lens Type | 650nm IR Cut |
| Operating Temperature | -30°C to +70°C |
| Mating Connector | DF30FC-24DS-0.4V |
