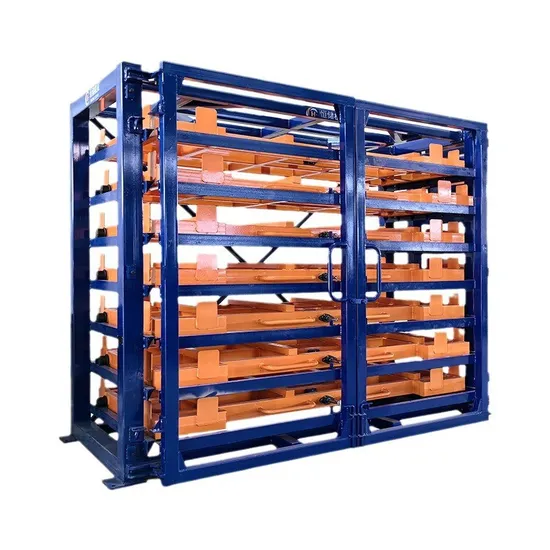

Precision - Engineered Sheet Metal Storage Shelves Iron Plate Storage Rack Sheet Metal Storage Rack

Product Description

Standard	HC-B3015-63	HC-B4015-63	HC-B4020-65	HC-B6020-66	Customized
Load (single layer)	3t	3t	5t	6t	Customization
Plate size mm	3000x1500	4000x1500	4000x2000	6000x2000
Number of layers	5+1
The available height of the partition layer is mm	≤220
Width when door is opened mm	3515			4015
External dimensions(length x height x width)mm	3505x2280x2000	4505x2280x2000	4505x2280x2500	6505x2280x2500
Drawer movement method	Integrated pull-out type
Ground clearance height of the bottom layer	355
Top floor height	2195			2250
Depth pad height	60				Customization
Model description:HC:Constant storage B:Board type
Digital description:For example,HC-B3015-63 3 metersx1.5 meters,6 layers,3 tons of board

Roll out sheet metal rack is ideal for organizing and managing your sheet metal well,such as steel sheets, Aluminum,Plates, Flat products, and tools. It optimize your vertical and floor space, improve work efficiency and creating a safe work environment.Features
1.Increase storage density and use more vertical space.
2.Organizing steel inventory efficiently by size, type, and material type..etc
3.Heavy duty storage Equipment with max loading 5tons per drawer.
4.Each roll out drawer can be extended completely.
5.Lock-in, Lock -out for each drawer,it is safe during operation.
6.One single person can be quick operated by lifter, vacuum,magnet, hoist.
7.Create a safer workplace and reducing material damage during handle material.
8.Complement laser cutting, shears, press brakes and other production machinery.
FACTORY
The company has a 16000-square-meter modern standard factory building and more than 100 employees. Meanwhile, it has assembled a professional service team to offer customized services that integrate production, delivery and installation guidance.The company's management and products have successfully passed ISO9001 and EU CE certifications. It has signed strategic cooperation agreements with well-known domestic enterprises. It also possesses a number of technical patents and has been honored with titles such as "AAA Credit Enterprise" and "Honest Entrepreneur".Ji'nan Constant Storage Machinery Manufacturing Co., LTD is a professional warehousing equipment manufacturer that integrates research and development, production, sales, installation, and service.
The company focuses on: laser cutting sheet metal storage shelves, drawer type sheet metal storage shelves, telescopic cantilever storage shelves, heavy-duty sheet metal and pipe storage shelves, and automatic loading and unloading sheet metal material warehouses.
Our main products are:
sheet material storage rack Roll Out Cantilever Racking Automatic Sheet Metal Storage System
Vertical Roll Out Sheet Racks Sheet Tower Profile storage warehouse
Pneumatic cantilever manipulator Servo Swing Arm Manipulator Forklift type loading and unloading robotic arm
Q1: How can I proceed with procurement?
You can contact our technical personnel in the background, and we will provide you with a suitable technical solution and quotation based on your parameters, or leave your contact information such as WhatsApp, WeChat, email, etc. We will have a professional sales team to contact you.
Q2: How do I let you know I need the right shelves?
You can tell us the material you want to put, as well as tell us the size of the material, the number of shelves, and some other detail that you need, then we will make professional solution for you. or leave your contact information, there will be a professional team to answer your questions.
Q3: Do you need a loading robotic arm or an integrated loading and unloading system?
Loading and unloading require the size of the laser cutting machine table to meet the requirements, and it is also necessary to know the specific loading method: board rack, exchange platform, or material warehouse. For specific needs, please leave your contact information to serve you
Q4: Can you provide on-site installation and debugging?
Yes, we can send professional personnel to the factory to install and debug the robotic arm until successful trial operation. Our team has served in South Africa, the United States, Russia, South Korea, Qatar, Egypt, Lebanon, Mexico and other places.
Q5: How will you ensure the quality of the product?
We have over 40 technical engineers, and we will have professional mechanical engineers to debug and solve any concerns; There is a dedicated quality inspection department that strictly implements ISO9001 quality standards to ensure product quality meets standards. We have professional CE certification to ensure smooth exports. Load testing shall be conducted before the equipment leaves the factory to ensure the safety and stability of the structure.
Q6: Where is your factory located?
Our factory has a modern standard factory building of 10000 square meters located at Building 2-1, Jiyang Industrial Park, Jinan, Shandong, China.
Q7: How can I know the strength of your company?
We can conduct video factory inspections and welcome visitors to our factory for on-site visits.
Q8: What kind of company are you?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise that integrates research and development, production, sales, installation, and service. The company focuses on intelligent sheet metal material warehouses, drawer style sheet metal shelves, telescopic cantilever shelves, servo swing arm manipulators, gantry loading and unloading manipulators, fully automatic loading and unloading series, heavy-duty sheet metal and pipe storage shelves. We have a professional technical team and advanced production equipment, committed to providing high-quality and high-performance mechanical products and solutions for global customers.
