Hicas Woodworking Machinery 4 Heads Planer Moulder

Product Description

HICAS Woodworking Machinery 4 Heads Planer Moulder
Product Description
Professional solution: wooden floors,door frames,stairs handguard,wooden,various wood lines and the big cutting quantity processing.
Product Parameters

Model	HC-M523	HC-M423
Max Working Thickness	8-160mm	8-160mm
Max Working Width	25-230mm	25-230mm
Operating Platform length	1950mm	1950mm
Feed Speed	5-28m/min	5-28m/min
Spindle Diameter	ø40mm	ø40mm
Spindle Speed	6000r/min	6000r/min
Gas Source Pressure	0.6MPa	0.6MPa
The First Bottom Spindle	7.5kw/10HP	7.5kw/10HP
The First Top Spindle	11kw/15HP	11kw/15HP
Right Side Spindle	7.5kw/10HP	7.5kw/10HP
Left Side Spindle	7.5kw/10HP	7.5kw/10HP
Second Bottom Spindle	7.5kw/10HP	--
Feed Beam Rise&Fall	0.75kw/1HP	0.75kw/1HP
Feeding	4kw/5.5HP	4kw/5.5HP
Total Motor Power	45.75kw	38.25kw
Right Side Spindle	ø125-ø180mm	ø125-ø180mm
Left Side Spindle	ø125-ø180mm	ø125-ø180mm
The First Bottom Spindle	ø125	ø125
The First Top Spindle	ø125-ø180mm	ø125-ø180mm
The Second Top Spindle	ø125-ø180mm	ø125-ø180mm
The Second Bottom Spindle	ø125-ø180mm	ø125-ø180mm
Feed Diameter	ø140mm	ø140mm
Dust Diameter	ø140mm	ø140mm
Dimensions	3635*1550*1750mm	3635*1550*1750mm
NET Weight	2800kg	2600kg
Gross Weight	2850kg	2650kg

Detailed Photos

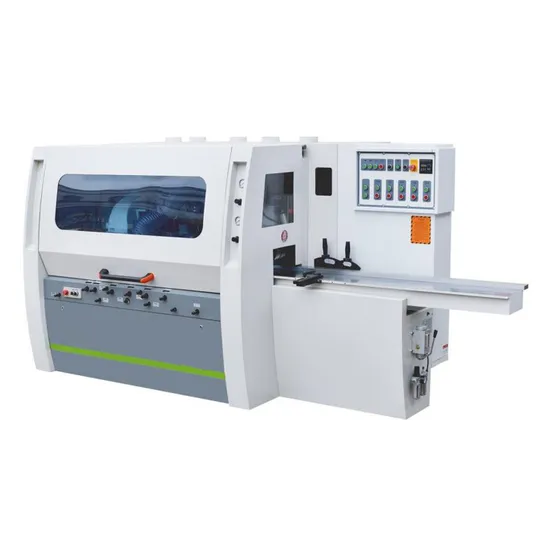

HC-M423 Four Side Moulder Machine1.The spindle uses the independent operation,shearing force is
strong.
2.Adopting frequency control,feeding speed reaches 5-30 meters.
3.The spindle can be up and down and move around to facilitate the various shapes processing of wood line.
4.The plating workbench is smooth and wearable.
5.Spindle adjustment concentrated in the front,easy to operate.
6.Equipped with a short feeding device,it is effectively to improve the utilization of short-material processing.
7.Workstations equipped with under active rollers to ensure smooth feeding.
8.Fully enclosed protective cover to avoid sawdust flying and noise isolation,it plays a role in security protection.
9.Pneumatic pressure feed wheel which can divide adjustment pressure,it is advantageous in the adjustment pressure of different
thickness wood to ensure smooth feeding.
Processing Wood Sample Diagram
Certifications


Company Profile

1. We have our own woodworking machinery factory.
2. 8 years exportation experience, have customers in more than 40 countries.
3. Engineer team with +20 years experience.
4. Diamond supplier in made-in-china.
5. Our services
Pre-sales service: To provide customers with the best on-site solutions with the best products and technologies. In order to better serve our customers, we have established a complete pre-sales service support system to provide the most suitable models according to customer needs. Equipment and solutions, together with customers to discuss and improve the customer's production process, processing technology problems.
After-sales service: HICAS after-sales customer service team, responsive. We can solve various problems for customers in the shortest time.
Tracking service: We track and record the equipment purchased by each customer and return to it regularly. Understand customer usage and improve feedback and feedback, and strive to be responsive to every customer. Solve every sanding problem.
6.Our products are widely sold in made-in-china.
7.Customer feedbacks
We are looking for Good customers like you! And Distributor or Agents Wanted! ! !
8.Packaging & shipping
FAQ
1. Do you offer installation?Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1) Technical support by phone, email or WhatsApp/Skype around the clock.
2) Friendly English version manual and operation video.
3) Engineer available to service machinery overseas.
5. Can you customized the machine?
Our machines can be customized made according to buyers' request.
6. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like edge banding machine, CNC router, drilling machine, saw machine,roller coater, spraying machine, membrane press can be provided as well.
7. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian.etc.
