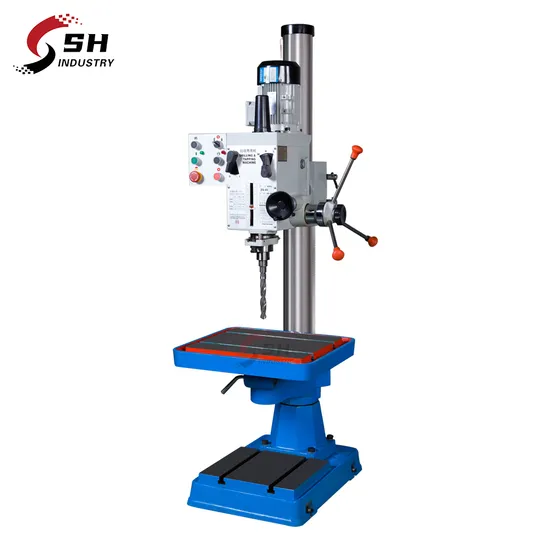

Vertical Drilling Tapping Machine Zs4120d Cheap Small Portable Drilling and Tapping Machine

Product Description

Vertical Drilling Tapping Machine ZS4120D Cheap Small Portable Drilling and Tapping Machine
Product Description
Product description:
Using famous electrical equipment ,stable feature and everlasting
Change easily between drilling and tapping
Special spindle design and arbor make sure chuck connection
Standard accessories :
Drill chuck
Taper sleeve
Arbor
Drift
Wrench
Special accessories:
vice
Safety guard
Tapping chuck
Product main technical specifications:

Model	ZS4120D	ZS4125D
Max. Drilling capacity(mm)	20	25
Diameter of column(mm)	85	85
Max.tapping capacity(mm)	M20/M16	M24/M20
Spindle travel(mm)	125	125
Distance spindle axis to generating line (mm)	240	240
Max. Distance spindle nose to table(mm)	397	397
Max. Distance spindle nose to base(mm)	560	560
Spindle taper(mm)	MT2	MT2
Spindle speeds range(r/min)	29-2150	29-2150
Spindle speeds series(r/min)	5	5
Dimension of base(mm)	280x300	280x300
Dimension of base(mm)	590X375	590X375
Overall height(mm)	1127	1127
Motor(W)	750/1100	750/1100
G.W/N.W(kg)	165/140	165/140
Packing size(cm)	82x48x102	82x48x102

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
