1/2" Female Fuel Pipe Fitting Connect Quick F Connector with Automotive Oil Pipe Tube

Product Description

1/2" Female Fuel pipe Fitting Connect Quick F Connector with Automotive oil pipe Tube

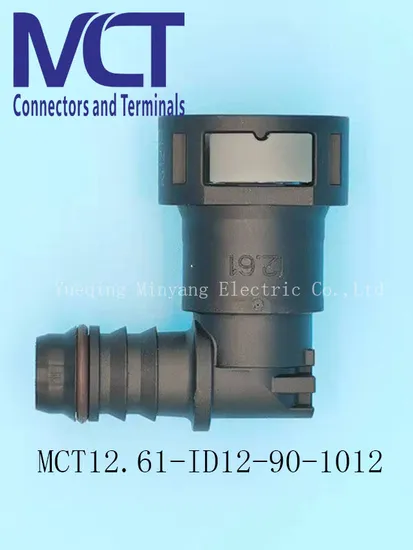

1/2" Quick connect 1/2 BARB 90 degree MCT12.61-ID12-90-1012
1. Material Detail

2. Working Environment
Gasoline and diesel fuel delivery systems , Ethanol , methanol or natural gas delivery systems or their vapor venting or evaporative emission control systems

Working pressure	5bar -7bar
Working pressure in Vacuum	-0.55bar (-7.2psi)
Working temperature	-40-120ºC , short time 150ºC

3. Additional information :
with O-ring on fire free
Size:Ø12.61mm-- ID 12.0mm
Rubber fitted:ID :12 mm


4. Application
Normally, SAE quick connect is connected to Nylon or Rubber hoses. This quick connector can be used to make both line-to lines as well as line-to-equipment connections.
This allows you to quickly connect the fuel lines by simply pulling out while pressing the lock.
