Sugar Balls Buttons Coating Polishing Mixing Glazing Enrobing Forming Pan Machine

Product Description

Peanuts Nuts coating polishing mixing glazing enrobing forming pan machine
Product Description

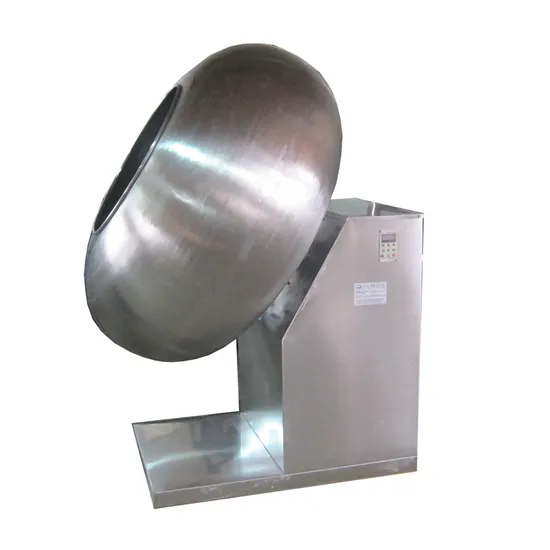

Sugar Chocolate Snack Food Coating Polishing Pan Machine
Sugarcoated tablets after polishing coating have polished surface, which can prevent oxidation, damping or volatilization, in addition, it can envelop bad smell and enable the drug to be conveniently identified and slow dissolution in the intestines and stomach.
Boiler rotates clockwise and sprays syrup and mixed syrup materials on the chip in the boiler in multiple times, enabling the syrup-mixed material to be evenly coated on the chip and sugarcoated tablets to tumble in the boiler. Meanwhile hot air is blown into the boiler to dry the surface moisture on tablets so as to produce certified sugarcoating pills.
The machine enables tablets to be formed in optimal materials curve flow in reasonable shape and stable linear velocity so as to meet the technological requirements of coating sugar-coat.
This coating machine is mainly used to press shaped slice, pill and the coating of granules in pharmaceutical industry, and also used for candy manufacturing or coating in foodstuff industry.
Detailed Photos
Sugar Chocolate Snack Food Coating Polishing Pan Machine
Product Parameters
Sugar Chocolate Snack Food Coating Polishing Pan Machine

Model	ST-BY400	ST-BY600	ST-BY800	ST-BY1000	ST-BY1250
Diameters(mm)	400	600	800	1000	1250
Capacity(kg/batch)	5	15	30-50	50-70	80-150
Rotation Speed(rpm)	46	36	36	32	28
Power of motor(KW)	0.37	0.75	1.5	1.5	2.2
Power of fan(KW)	0.075	0.06	0.12	0.12	0.18
Power of heat(KW)	1.2	2	2	3	5
Overall size(cm)	55*40 *80	80*60 *90	100*80 *143	110*100 *156	125*120*182
Functions	Polishing, Coating, Glazing, Mixing, Cooling, Heating&Drying,etc. Note: Pls let me know your detailed requirement. Then will offer you machine with different functions that you need!!!
