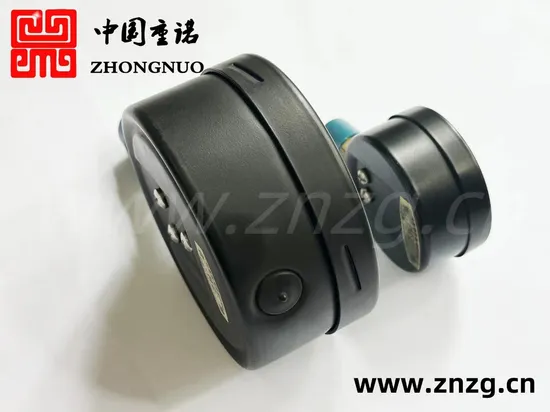

Acid Resistant Digital Pressure Gauge for Chemical Applications and Reliability
| US$2.50-30.00 | 50 Pieces (MOQ) |
Basic Info.
Accuracy
0.1
Display
Number+Pointer
Application
Industrial, Civil
Structure
Threaded Pressure Gauge
Connection Type
Axial
Installation Structure
Direct Mounting
Features of Measurement Medium
Corrosion Resistant
Indicating Pressure Reference
General Pressure Gauge
Transport Package
Boxes and Cartons
Product Description
Precision-Crafted Sheet Metal Stamping Parts - Your Premier Stainless Steel Stamping Parts Manufacturer
| Basic Info. | |||||||||||
| Application: | General pressure gauge is suitable for measuring the pressure of no explosion risk, no crystallization, no solidification and no corrosion effect on steel, copper alloy liquid, steam and gas and other media | ||||||||||
| Place of origin: | Nanpi County, Cangzhou City, Hebei province | ||||||||||
| Productive capacity: | 500,000 pieces/month | ||||||||||
| measuring range | |||||||||||
| model number | measuring range MPa, | precision(%) | |||||||||
| y-40(Z) | 0~0.6,1,1.6,2.5,4,6,10, 16,25,-0.1~0 | 2.5 | |||||||||
| Y-60(Z/ZT) | 0~0.6,1,1.6,2.5,4,6,10, 16,25,-0.10,0.06,0.15,0.3, 0.5,0.9,1.5,2.4 | 2.5 | |||||||||
| y-100(Z/ZT) Y-150(2/ZT) | 0~0.1,0.16,0.25,0.4,0.6, 1,1.6,2.5,4,6,10,16,25, 40,60,-0.1~0,0.06,0.15, 0.3,0.5,0.9,1.5,2.4, | 1.6 | |||||||||
| Y-200 Y-250 | 0~0.6,1,1.6,2.5,4,6 | 1.6 | |||||||||
| Note: 1, the model in brackets indicates optional, can refer to the model diagram. 2, the range in addition to MPa can also choose psi, bar, mmHg | |||||||||||
| geometric dimensioning | |||||||||||
| model number | a | b | b. | b, | D1 | D2 | e | f | G | H | SW |
| Y-40 | 8.5 | 23 | 23 | 58 | 40 | 40 | 8.5 | M10×1.0 | 58 | 11 | |
| Y-40Z | 0 | 23 | 23 | 44 | 40 | 61 | 0 | M10×1.0 | 44 | 14 | |
| Y-60 | 10.5 | 28 | 28 | 56 | 60 | 99 | 10.5 | M14X1.5 | 56 | 22 | |
| Y-60Z | 0 | 28 | 28 | 56 | 60 | 149 | 0 | M14×1.5 | 56 | 22 | |
| Y-60ZT | 0 | 28 | 28 | 56 | 60 | 40 | 24 | 0 | M14×1.5 | 56 | 11 |
| Y-100 | 16 | 42 | 42 | 90 | 100 | 61 | 16 | M20×1.5 | 90 | 14 | |
| y-100ZT | 24 | 43 | 43 | 83 | 100 | 99 | 25 | 24 | M20×1.5 | 83 | 22 |
| y-150 | 16 | 44 | 44 | 116 | 150 | 149 | 16 | M20X1.5 | 116 | 22 | |
| Y-150ZT | 35 | 45 | 45 | 85 | 150 | 40 | 27 | 35 | M20×1.5 | 85 | 11 |
| Y-200 | 16 | 46 | 46 | 140 | 200 | 61 | 16 | M20×1.5 | 140 | 14 | |
| Y-250 | 60 | 60 | 170 | 250 | 99 | M120X1.5 | 170 | 22 | |||
