Steel Cord Conveyor Belt PVC Flat Belt Splice Tape Vulcanizing Press Machine
Basic Info.
Certification
ISO
Condition
New
Customized
Non-Customized
Automatic Grade
Semiautomatic
Structure
Horizontal
Place of Origin
Shandong, China
Voltage
220-480V
Type
Vulcanizer
Add Request
Quick Water Cooling System
Application
Rubber Belt Splicing and Repair
Advantage
Portable
Suitable Conveyor Width
1200mm
Core Components
Motor, Pump
Weight (Kg)
850 Kg
Working Pressure
1.5 MPa
Curing Temperature
145ºC
Heating Time
15-20 Minutes
Showroom Location
None
Key Selling Points
Pressure Vessel, Pump, Metal Frame, Heating System
Applicable Industries
Building Material Shops, Energy & Mining, Other, M
Transport Package
1930*830*760mm
Specification
customized
Trademark
wanflon
Origin
China
HS Code
8477800000
Production Capacity
500sets/Year
Product Description

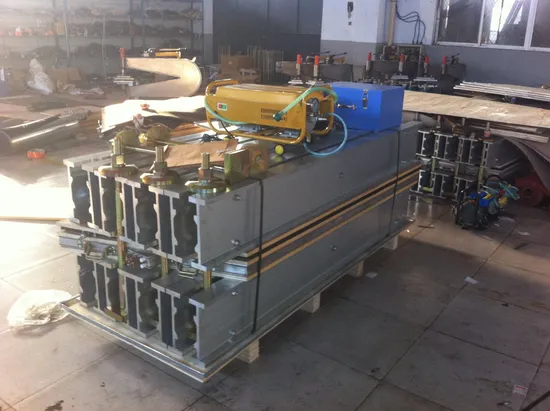

Steel Cord Conveyor Belt Pvc Flat Belt Splice Tape Vulcanizing Press Machine1. The rubber vulcanizing machine has light weight; About one person can move it. It consists of the following components: Rack / Pressure Bracket, fastening device,
sizing block, screw, nut, gasket, high-pressure hose, hydraulic test pump, thermal baffle, on the heating plate, secondary cable, electric cabinet, cables, down the heating plate, Suppress water bag. 2. The material of main machine components made of aluminum alloy, light weight, easy installation and removal, easy to handle. 3. Suppress water bag(its function is increase pressure) technology has reached international advanced level, it has following characters: (1)Light weight, it is the 1/4 weight of the ordinary.
(2)Large expansion amplitude.
(3)Uniform pressure and the pressure can reach 3.0MPa.
(4)No water leakage and long life.
4. The electric cabinet can automatic rise temperature, automatic control temperature and calculate time. Product Paramenters
| No. | SPEC | Rating Voltage (V) | Power Frequency (HZ) | Motor Power (KW) | Applied Belt Width (mm) |
| 1 | ZLJ-650 | 380V/660V | 50HZ | 8.7 | 650 |
| 2 | ZLJ-800 | 380V/660V | 50HZ | 10.6 | 800 |
| 3 | ZLJ-1000 | 380V/660V | 50HZ | 13.5 | 1000 |
| 4 | ZLJ-1200 | 380V/660V | 50HZ | 15.4 | 1200 |
| 5 | ZLJ-1400 | 380V/660V | 50HZ | 18.2 | 1400 |
| 6 | ZLJ-1600 | 380V/660V | 50HZ | 20.1 | 1600 |
| 7 | ZLJ-1800 | 380V/660V | 50HZ | 22.1 | 1800 |
