China Borehole Z3040X11B Cheap Radial Drilling Machine price
Basic Info.
Model NO.
Z3040X11B
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
40mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max. drilling diameter
40
Spindle travel
270mm
Spindle taper
MT4
Spindle speeds range
75, 130,240,380,660,1200rpm
Spindle speed steps
6
Spindle feeding range
0.10/0.16/0.25mm/r
Spindle feeding steps
3
Maximum resistance to the spindle
6300N
Net weight
1600KG
Main motor power (kw)
2.2
Rocker rotary angle
90
Movements motor power
0.75kw
Net weight (kg)
1600
Overall dimensions (mm)
1500×705×2200
Transport Package
Plywood Case
Specification
1500× 705× 2200mm
Trademark
Luzhong
Origin
China
HS Code
8459290000
Production Capacity
1000sets/Month
Product Description
China Borehole Z3040X11B Cheap Radial Drilling Machine priceProduct Description

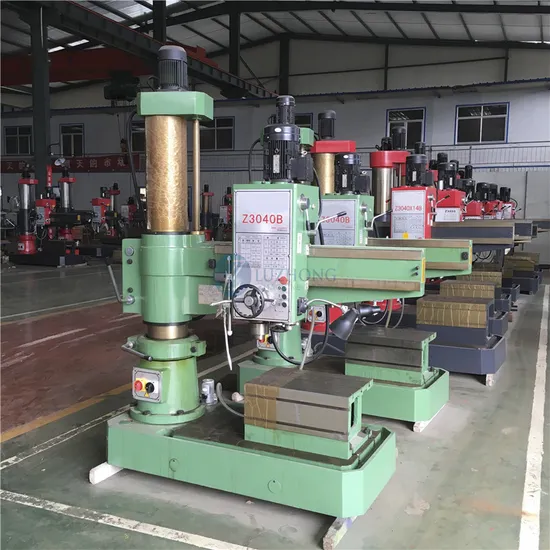

Detailed Photos
Product Parameters
The main performance characteristics:
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic retraction
Strengthening spindle
Product main technical parameters:
| Model | Z3040x11B |
| Max.drilling dia (mm) | 40 |
| Distance from spindle nose to table surface (mm) | 330-1050 |
| Distance from spindle axis to column surface (mm) | 170-1100 |
| Spindle travel (mm) | 270 |
| Spindle taper(MT) | 4 |
| Spindle speeds range(r.p.m) | 75, 130,240,380,660,1200 |
| Spindle speed steps | 6 |
| Spindle feeding range(mm/r) | 0.10/0.16/0.25 |
| Spindle feeding steps | 3 |
| Rocker rotary angle (°) | ±90° |
| Main motor power (kw) | 2.2 |
| Maximum resistance to the spindle(N) | 6300 |
| Movements motor power (kw) | 0.75 |
| Net weight (kg) | 1600 |
| Overall dimensions (mm) | 1500×705×2200 |
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
