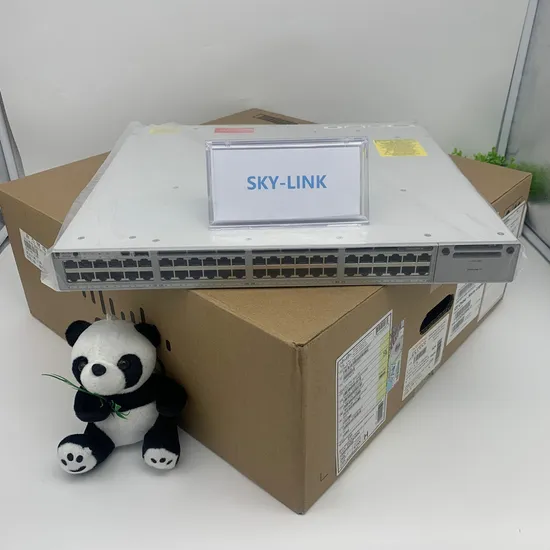

Original New Cisco 9200 Series 48 Ports Network Ethernet Gabigit Switch C9200L-48t-4G-E
Basic Info.
Model NO.
C9200L-48T-4G-E
Transmission Rate
10/100/1000Mbps
Ports
≧48
Device Type
Switch - 48 Ports - L3 - Stackable
Enclosure Type
Rack-Mountable
Subtype
Gigabit Ethernet
Poe Budget
740 W
Performance
Stacking Bandwidth: 80 Gbps Switching Capacity: 10
Capacity
Virtual Networks: 1 Ipv4 Routes: 11000 Ipv4 Routin
Mac Address Table Size
16000 Entries
Jumbo Frame Support
9198 Bytes
Routing Protocol
Ospf, Rip-1, Rip-2, Eigrp, Vrrp, Pim-Sm, Eigrp for
Remote Management Protocol
Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Cli, Netc
Features
Quality of Service (Qos), Cisco Stackwise Technol
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1d,
Power
AC 100-240 V (50 - 60 Hz)
Power Redundancy
Optional
Dimensions (Wxdxh)
44.5 Cm X 4.4 Cm X 28.8 Cm
Transport Package
Cardboard Box and Waterproof Tape
Specification
4.35kg
Trademark
CISCO
Origin
China
Production Capacity
100pieces One Week
Product Description
| Device Type | Switch - 48 ports - L3 - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x Gigabit SFP (uplink) |
| Performance | Stacking bandwidth: 80 Gbps Switching capacity: 104 Gbps Forwarding rate: 154.76 Mpps |
| Capacity | Virtual networks: 1 IPv4 routes: 11000 IPv4 routing table entries: 3000 IPv6 routing table entries: 1500 Multicast scale: 1000 ACL scale entries: 1500 FNF entries: 16000 VLANs supported: 1024 Switched virtual interfaces (SVIs): 512 QoS hardware queues per port: 8 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Features | Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| RAM | 2 GB |
| Flash Memory | 4 GB |
| Interfaces | 48 x 1000Base-T RJ-45 4 x 1000Base-X SFP uplink 1 x network stack device 1 x management (LAN) RJ-45 1 x console RJ-45 |
| Power Device | Internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| MTBF | 508,700 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Width | 44.5 cm |
| Depth | 4.4 cm |
| Height | 28.8 cm |
| Weight | 4.35 kg |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
