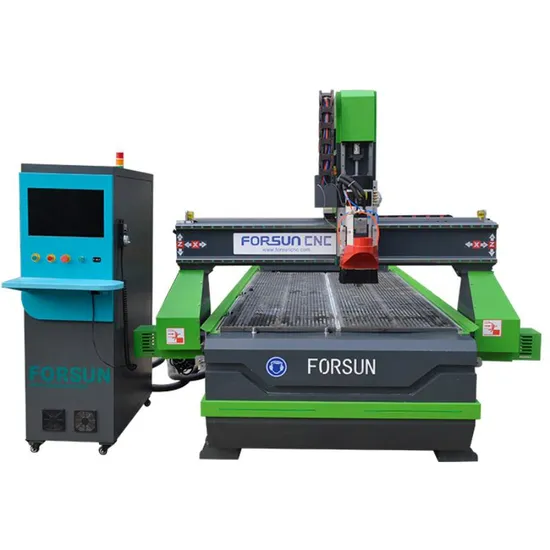

Aluminium Wood and Soft Metal Carving Machine1325 3D Atc CNC Engraving Machine

Product Description

Aluminium Wood And Soft Metal Carving Machine1325 3d ATC Cnc Engraving Machine

Product Description
What the feature of our cnc router for wood?
Ø Effective working area: 1300*2500mm*200mm
Ø 9kw Italy HSD ATC air cooling spindle
Ø 11kw Taiwan Delta inverter
Ø German SIEMENS 808D control system
Ø German SIEMENS servo motor
Ø Linear 10 PCS Tool Magazine
Ø Vacuum & T-slot working table
Ø Taiwan TBI Ball Screw,Helical Rack and Pinion
Detailed Photos

Our Advantages
What the advantage of our cnc router machine?

Spindle	Italy HSD Air Cooling Spindle Top brand of the world. Spindle speed: 0-24000RPM.
Inverter	Taiwan Delta Inverter It can output 150% of rated torque at zero speed, and it can have "point to point" and relative distance control functions for position control.
Motor	German SIEMENS servo motor high working efficiency and stable running promised
Control system	SIEMENS 808D Controller Thanks to its panel based design philosophy, and IP65's protection level, the SINUMERIK 808 series is ideal for harsh environments.
Working table	T-slot and Vacuum Table Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place.
Tool magazine	Linear 10 PCS Tool Magazine The use of an 10 Tool Rotary speeds up tool changes assuring faster times increasing production throughput.

Technical Data of our cnc router machine
NO	Description	Parameter
1	Positioning Accuracy	±0.03/300mm
2	Max. Rapid Travel Rate	80000mm/min
3	Max. Working Speed	45000mm/min
4	Spindle Speed	0-24000RPM
5	Command Language	G Code
6	Flash Memory	512M
7	Collet	ER32
8	X,Y Resolution	<0.03mm
9	Running Environment Temperature	0 - 45 Centigrade
10	Relative Humidity	30% - 75%
11	Packing Size	3520*2280*2100mm
12	N.W.	1500KG
13	G.W.	1700KG

After Sales Service
Services of 3d cnc router
Guarantee:
1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc.
Packaging & Shipping
What is Packaging of cnc router

customer visit
Customer evaluation

FAQ
Q1:How long is the delivery time of this cnc router machine?
For standard machines, it would be 7-15 days;
For non-standard machines and customized machines according to client s specific requirements,
it would be 15 to 30 days.
Q2: What mode of payment for this cnc router machine?
T/T, 50% deposit and the balance 50% should be paid before shipment.
Q3: If some problems happened to this cnc milling machine during warranty
period, what should i do?
We will supply free parts in machine warranty period if machine have some problem. While we
also supply free after-service forever,so any doubts,just let us know,we will give you solutions in 30 minutes.
