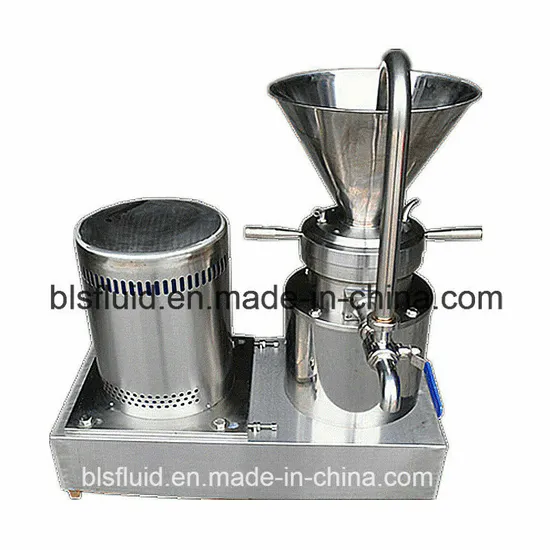

Stainless Steel Split-Case Liquid Colloid Mill

Product Description

Stainless Steel Split-Case Liquid Colloid Mill
1.Emulsified Size: 2-40 um

2.Operation Principle: shearing,grinding high-speed stirring

3. Feature: high frequency vibration and high speed seirl

4.Material: SS304; SS316
5.Standard: DIN,3A,SMS,BS,AS,BPE etc

6.Packaging: standard export packaging

7.Minimum order: 1 piece
8. Application: Dairy,Beverage,Food,Beverage,Pharmacy,Cosmetic etc.
Main technical parameters of Stainless Steel Split-Case Liquid Colloid Mill:

Model	Emulsified size (um)	Output T/h	Millstone Dim(mm)	Cooling water pipe(mm)	Outlet Dim (mm)	Inlet Dim (mm)	Speed (rpm)	Power (kw)
JMF-65	2-40	0.02-0.5	65	10	20	30	2800	2.2
JMF-80	2-40	0.3-1	80	12	25	48	2800	4
JMF-100	2-40	0.5-2	100	12	25	66	2800	5.5/7.5
JMF-120	2-40	0.5-3	120	12	32	66	2800	7.5
JMF-140	2-40	0.5-4	140	12	32	66	2800	7.5/11
JMF-180	2-40	1.0-7	180	12	38	100	2800	11/15
JMF-200	2-40	1.0-10	200	12	38	100	2800	15/18.5

PRINCIPLE:
The basic working principle of colloid mill is shearing, grinding as well as high-speed stirring applied force, grinding is finished depending on the relative movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and to grind, emulsify, smash, homogenize and mix them under complex forces such as high-frequency shake, high-speed vortex and others at the same time, so as to achieve the effect of fine and super micro.

Application:
JM series colloidal mill is a new-type equipment of wet type super micro grain processing, suitable for the homogenization, emulsification, separation, smash and milling of various emulsions. It widely used in foodstuff (fruit jam, juice, albumen milk, soy milk, milk tea, dairy, beverage,etc.), pharmacy, dairy chemical, chemical industry, emulsion asphalt, coal floating agent, ceramic glaze, nanometer material, etc.
Patent:
The colloid mill in Our factory has been applied all new technology, which has won national invention patent No. 200510123583.8, the international application patent PCT/CN2006/001481, greatly extend the service life of the colloid mill, and improve the quality of the colloid mill products.

Warranty:
1. Since the acquisition date, the mechanical seal within three-months warranty, and other parts with 12-month warranty under normal circumstances.
2. Beyond the time limit, a paid maintenance service is provided for life. Normal wear is not included.
3.Under warranty,no free repair in any circumstances below:
a. No purchase vouchers(Invoice or Receipt)
b. Damage caused by disassembling or modification
c. Due to the careless error use or improper use man-made damage
d. Under the condition of not usually use(e.g, long time used in harsh place) caused by the fault or damage
e. Product packaging is not complete, the exterior pollution for use
