3 Axis 4 Axis Wood Cutting Machine CNC Router Kitchen Cabinet Door

Product Description

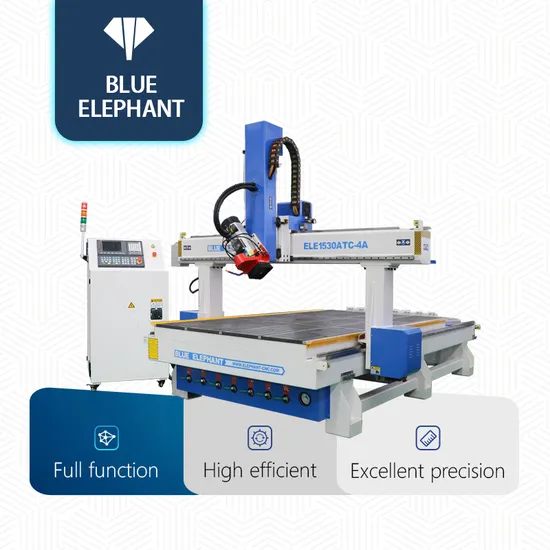

Best quality wood working cnc router 3d milling machine 4 axis 1530 ATC carving machine with Automatic Tool Changer

Parameters:

Description	Parameter
Model	ELECNC1530ATC-4A
X,Y Working Area	1500*3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc
Z axis travel	400mm, option: 500mm, 600mm, 700mm, etc
The 4th axis	can swing from -90 degree to +90 degree
Spindle type	9kw ATC air cooling spindle, lsO30, ER32
Inverter type	11KW
Drilling bank	Dptional
Tool magazine	Linear type auto tool changer Option: Carousel type auto tool changer
Control system	Taiwan SYNTEC /LNC controller option: Ncstudio
Reducer	Japan SHlMPO reducer
Machine structure	Heawy duty body with quenching treatment
Work table	Vacuum work table
Linear guide	Taiwan Linear guide with dust proof
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany lgus cables with CE, cUL certificate
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working air pressure	0.6MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/60HZ

PS:All the working area and specifications can be customized according to your requests.
Application
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Packaging & Delivery:
Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Welcome to our factory:
Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine. We have our R & D department, Quality control department, and after sale & service department. Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on. We had got CE and ISO9001 certification always offer best quality machine. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
