Laser Bridge CNC Type Stone Cutting Machine for Granite
Basic Info.
Model NO.
QZQ-1600
Automation
Manual
Precision
Precision
Application
Ceramics, Cement Brick, Concrete Curb, Granite, Marble
Type for Grinding Machine
Special Grinding Machine
Grinding Machine Type
Vibration Polishing Machine
Grinding Method
Wet Grind
Certification
ISO, CE
Condition
New
Main Motor Power
15kw
Max Cutting Size
3000*1200*450
Cutting Table Rotation
0-90degree
Blade Diameter
900-1200
Transport Package
1set Machine in One 20 Gp Container
Specification
5000*2200*2400mm
Trademark
wanlong
Origin
Fujian Quanzhou
HS Code
8464101000
Production Capacity
180sets/Month
Product Description

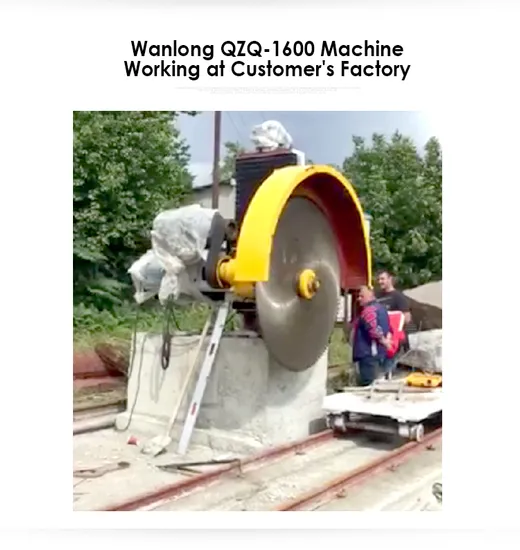

Laser Bridge CNC Type Stone Cutting Machine for Granite
QZQ-600/1200 Bridge Type Edge Cutting machine(medium size)equipped with 360 degree rotary table adopts wide-span bridge type structure. Horizontal stone slicing can be achieved by moving the girder. The maximum blade vertical stroke can be up to 3.6M with flexibility in rotation, recise in positioning, and stability in operation. Themainframe of the machine adopts imported frequency transducer to achieve stepless adjustment of cutting speed. It is applicable for cutting valuable tombstones.Technical parameters QZQ-600/128
Max. Diameter of blade mm 600-1200Blade vertical stroke 500Cutting tabletation range n 0-360°Water consumption 4Main motor power kw 18.5Table dimension (L*W) mm 3000*1600Overall dimension (L*W*H) mm 6300*4500*3200Max cutting dimensions (L*W*H) mm 3200*2000*450Approximate weight. Kg. 6500
| Max. diameter of blade | mm | 600-900 | 1000-1200 |
| Main motor power | KW | 18.5 | 18.5 |
| Blade vertical stroke | mm | 500 | 500 |
| Table dimensions(L x W) | mm | 3000*2000 | 3000*2000 |
| Cutting table rotation range | n° | 0-360° | 0-360° |
| Max. cutting size(L x W x H) | mm | 3000*1600*300 | 3000*1600*450 |
| Overall dimensions(L x W x H) | mm | 6000*5000*4200 | 6000*5000*4200 |
| Water consumption | m³/h | 4 | 4 |
| Approximate weight | Kg | 6000 | 6500 |
