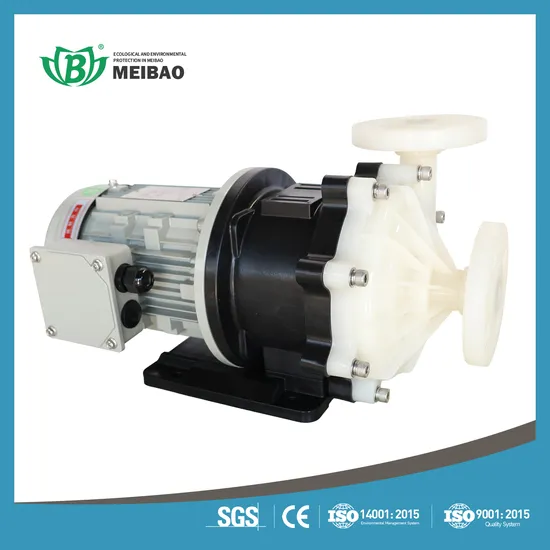

Horizontal Anti-Corrosive Magnetic Pump to Transfer Chemical Acid Alkali Liquid

Product Description

Horizontal Anti-Corrosive Magnetic Pump to Transfer Chemical Acid Alkali Liquid
Product Description Acid and alkali resistant magnetic pump
1. The pump head and the motor connecting foot are formed as one body. Stable and firm, long service life, maintenance and disassembly more simple and convenient.
2. Magnetic drive. No shaft seal design. Good sealing. Will not cause chemical leakage.
3. Impeller and inner magnetic integrated forming. Strengthen the impeller. Increase efficiency
4. Combined RF flange with adjustable screw hole direction. In addition to providing pipe convenience, it can avoid leakage caused by flange deformation of pipe pressure.
5. By precisely setting the relative position of the passive magnet and the active magnet, the position of the magnetic sac can be effectively controlled. Even when idling, the rear end of the bearing will not contact the rear thrust ring, which effectively inhibits the generation of friction heat. The lubrication of the friction part is ensured.
6. A partial volute shape is designed on the front and back shell of the pump. The assembly results in the overall ideal spiral shape of the chamber. The leakage phenomenon caused by the liquid from the impeller flowing back into the pump chamber is effectively inhibited. Thus, the liquid is smoothly and efficiently directed to the pump outlet.
Meibao magnetic pump has been widely used in chemical plants, sewage, sewage treatment,factory wastewater, municipal sewage treatment, food, beverages, paper medicine and other fields.
Detailed Photos
Product Parameters

Model	Curve 50Hz/60Hz	Aperture(DN)		Full flow (L/min) 50Hz/60Hz	Full head (m) 50Hz/60Hz	Phase(Φ)	Power(W)
		Inlet	outlet
MS-F-203	a A	20	20	32/38	3.8/5.4	1	45
MS-F-204	bB	20	20	45/52	4.616.5	1	65
MS-F-255	cC	25	25	60/70	5.6/8.2	1/3	90
MS-F-257	dD	25	25	86/97	6.719.7	1/3	180
MS-F-258	eE	25	25	120/130	8.6/11.6	1/3	260
MNX-F-250	aA	25	25	120/120	15/15	3	0.37
MNX-F-251	bB	25	25	160/160	21/20.5	3	0.75
MNX-F-440	CC	40	40	260/260	12/11	3	0.37
MNX-F-441	dD	40	40	320/320	17.5/16.5	3	0.75
MNX-F-452	eE	50	40	450/450	24/21	3	1.5
MNX-F-453	fF	50	40	530/530	29/30	3	2.2
MSH-F-440	a A	40	40	280/280	12.5/11.5	1	0.37
MSH-F-441	b B	40	40	330/320	18/19	1/3	0.75
MSH-F-452	C C	50	40	400/400	23/22	1/3	1.5
MSH-F-453	d D	50	40	500/500	24/22.5	1/3	2.2
MSH-F-455	e E	50	40	600/600	29/31	1/3	3.75
MSH-F-565	f F	65	50	630/630	24/25	1/3	3.75
MSH-F-665	g G	65	65	875/875	20/20	1/3	3.75
