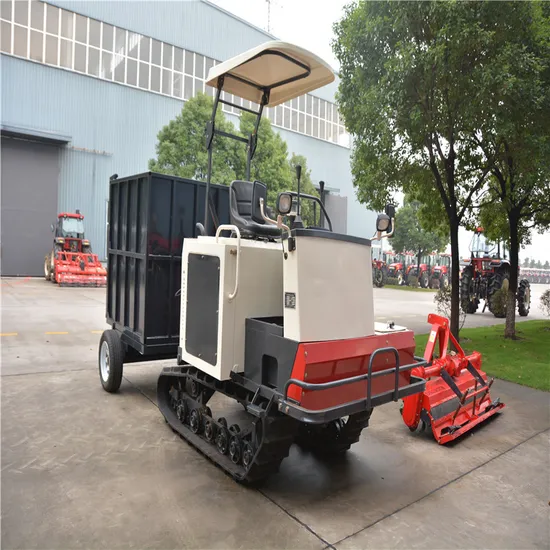

New Design FM World Fully Automatic High Speed Crawler Rotary Tiller
| Negotiable | 1 Pieces (MOQ) |
Basic Info.
Model NO.
WD3100
Farming Policy
Paddy Field Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Fixed Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Red
Key Selling Points
High Productivity
After-Sales Service Provided
Video Technical Support
Video Technical Support
New Product 2020
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
Transport Package
Container
Trademark
FM WORLD
Origin
Jiangsu, China
Product Description
2020 New Design FM WORLD Fully Automatic High speed Crawler Rotary TillerFeature:
Three points suspension for different implements.
Adopt hydraulic lifting mechanism for meeting rotary tiller working on rigid soil.
Widen rubber track with less ground touch pressure ensures machine easily pass through deep mud field.
Use improted HST, one lever control steering and implement lifted by hydraulic means, easy operation.
Equipped with self resecure mechanism, easy working in the paddy field.
Parameters as below:
| Model | WD3100 | |
| Structure | track type | |
| Overall size (length*width*heith)(mm) | 3894*2565*2615 | |
| Weight(kg) | 2380 | |
| Working efficiency(hm²/h) | ≥0.38 | |
| Guage(mm) | 1150 | |
| Track regulation | Standard | 450mm*90mm*51 |
| Standard | 450mm*90mm*51 | |
| Standard | high teeth | |
| Rotating Speed(r/mm) | 780 | |
| Adopting engine | Rated power(HP) | 102 |
| Rotating Speed(r/min) | 2600 | |
| Rotary part | Width(mm) | 2300 |
| Tilling depth(mm) | ≥80 | |
| Numbers of rotary blade | 100 | |
| Type of rotary blade | T175 | |
| Speed of knife shaft(r/min) | 280 | |
