Durable High Efficiency 5 Axis Double Column CNC Machining Center Gantry Type Machine Center

Product Description

Product Description
The 5 Axis Double Column Gantry CNC Machining Center from LiSN is of high precision and high rigidity. The worktable size of this machine is 2200mm*1100mm and the max bearing capability is 6T. It is your best choice for precision heavy cutting and processing.

The machine is equipped with a high speed spindle, the maximum speed is up to 6000RPM. The rigidity and precision of this spindle is of the first class, which not only absorbs vibration effectively, but also achieves high speed and accurate cutting.

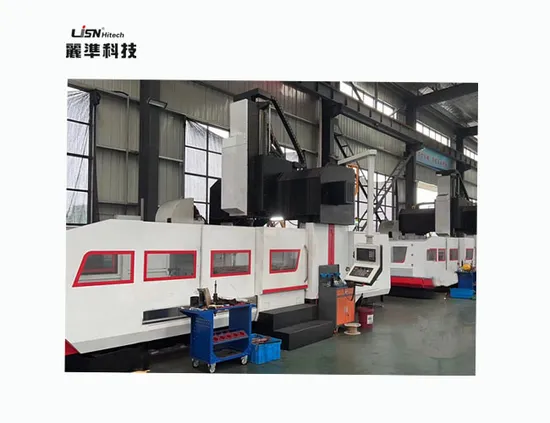

Detailed Photos
Product Parameters

TEM	MODELS	DY2013
WORKTABLE (WIDTH*LENGTH)	mm	2200*1100
MAX LOAD BEARING OF WORKTABLE	t	6
X/Y/Z AXIS TRAVEL	mm	2000/1300/800
DISTANCE FROM SPINDLE NOSE TOWORKBENCH	mm	150-950
SPINDLE HOLE TAPER		BT50
SPINDLE SPEED RANGE	r/min	6000
TRANSMISSION OF SPINDLE BOX	BELT/DIRECT	BELT
DISTANCE BETWEEN TOW COLUMNS	mm	1300
X/Y/Z RAPID FEED SPEED	m/min	12/12/10
MAX CUTTING FEED SPEED	m/min	10-7000
X/Y/Z POSITION ACCURACY	mm	±0.015/300
X/Y/Z RE-POSITION ACCURACY	mm	±0.01
MACHINE DIMENSION	mm	6110*4282*4565
MACHINE WEIGHT	T	21
POWER DEMAND	KVA	35
AIR PRESSURE	m ³mim	7

Company Profile
Standard Configuration for Gantry Series 1. Spindle temperature control system
2. Central automatic lubrication system
3. Fully sealed sheet metal
4. Cutting fluid system (with pump and tank)
5. Strong double - spiral iron chip roller
6. Chain type iron chip conveyor and collecting bucket
7. Foundation bolts and level adjusting screws
8. Adjusting tool
9. Warning lights
10. Blow air cleaning device
11. Automatic power failure system
Optional Configuration for Gantry Series 1. 8000/10000RPM Direct Driven Spindle
2. Handle and broach bolt: DIN50/CAT50/ISO50
3. Increase the height of the column by 200mm
4. 40 tools magazine tool
5. XYZ three axis optical ruler (HEIDENHAIN)
6. Spindle temperature rise heat compensation function
7. Oil circuit tool handle connection
8. Spindle center water outlet system
9. Automatic tool length measuring device
10. Automatic workpiece measuring device
11. CNC rotary worktable
12. Disc type oil-water separator
13. Spray cooling system

FAQ
1. Is it all right to make customer's own brand name?
A: yes,we are available with OEM.

2. Are you a manufactuer or trading company?
A:We are the manufacturer.

3. Can you do the design for us?
A: yes, if you want a different control system design or higher column, we can surely fulfill your damand.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
