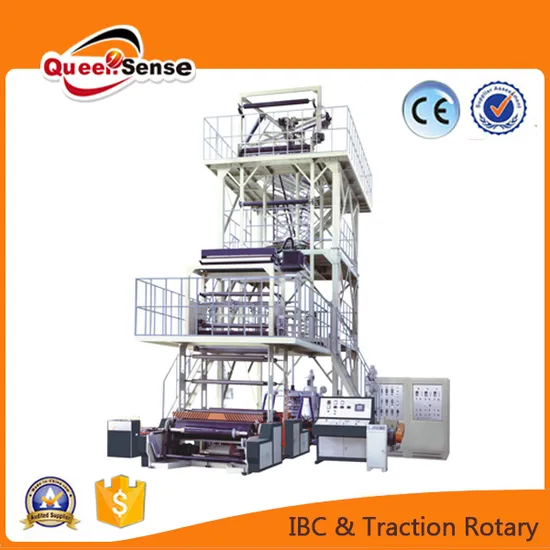

Three Layer Co-Extrusion Rotary Die Film Blowing Machine
| US$50,000.00-80,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QS-GS1200-2100
Maximum Folding Width of Film
2000mm
Screw Diameter
65mm
Automation
Automatic
Computerized
Computerized
Machine Weight
8T
Certification
CE, ISO9001:2008
Film Thickness
0.028-0.2mm
Max.Extrusion Output
120kg/H
Driving Motor
18.5-37kw
Winding Speed
5-50m/Min
Size
9.5*4.5*7.5m
Transport Package
Seaworthy
Specification
CE SGS
Trademark
QUEENSENSE
Origin
China
HS Code
847780000
Production Capacity
100PCS/Per Years
Product Description
This machine is applied to manufacturing printed or uncolored T-shirt bags made of HDPE, LDPE roll film. It adopts double stepping (servo) motor fixed length, and the feeding, sealing, cutting, punching holes and transporting are completed only in one process. It is of high degree of automation and good economic results. Product ParametersApplications:
Three-layer plastic coextrusion blow molding composite film units are developed by us according to the market requirements. In the design structure, advanced levels of similar products at home and aboard are absorbed. They are applicable to LDPE, HDPE, LLDPE, MLLDPE and PA packaging films. Such films can be widely used in light and heavy packages such as various kinds of fresh fruit, meat wares, pickles, fresh milk and liquid drinks because they are quite able to provide barriers, preserve moisture, and resist damp, rain, wind, frosting and oil, and isolate oxygen.
Main technical parameters:
Model | 3SJ-G1000 | 3SJ-G1200 | 3SJ-G1500 | |
| Diameter of screw | 55×2 60×1 | 60×2 65×1 | 65×2 70×1 | |
| Length-diameter ratio | 28:1/30:1 | 28:1/30:1 | 28:1/30:1 | |
| Speed of screw | 15-150r/min | 15-150r/min | 15-150r/min | |
| Power of main motor | 15Kw×2 18.5Kw×1 | 18.5Kw×2 22Kw×1 | 22Kw×2 30Kw×1 | |
| Output of a single extruder | 50kg/h | 80kg/h | 100kg/h | |
| Specification of die orifice | 150 φ200 | 200 φ250×1 | 250 300×1 | |
| Film thickness | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | |
| Max. lay-flat width of film | 1000mm | 1200mm | 1500mm | |
| Total capacity of electric appliance | 76Kw | 88Kw | 102Kw | |
| Overall dimensions: | 6600×4100×5000mm | 6800×4300×6000mm | 7000×4800×7500mm | |
| Machine weight | 4T | 5T | 6T | |
Detailed Photos
Packaging & Shipping
Certifications
