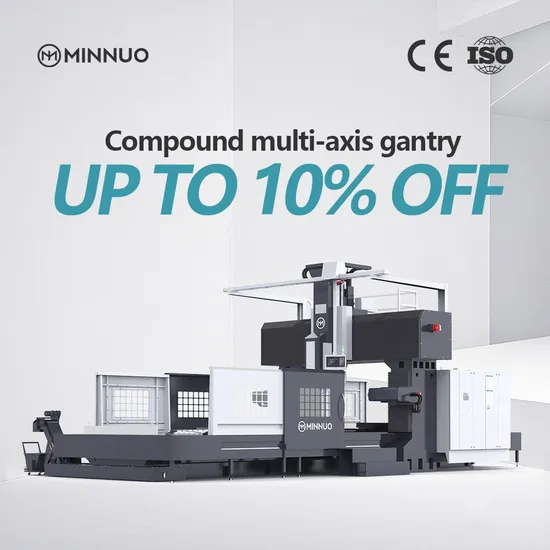

Widely Used Gantry Machining Center Easy to Adjust Angle High Speed Spindle Advanced Structure CNC Gantry Machine

Widely Used Gantry Machining Center Easy to Adjust Angle High Speed Spindle Advanced Structure CNC Gantry Machine

US$56,100.00-71,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
XH2014-CX2
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
CNC Control System
GSK/ Fanuc/ Siemens
Machinery Test Report
Provided
Cutting Ability
Strong
Motion Attribute
Quick
Transport Package
Iron Frame and Wooden Box
Trademark
MINNUO
Origin
China
HS Code
8457103000
Production Capacity
500 Units Per Year

Product Description

Gantry machining center is an efficient and precise type of CNC machine tool, which has a wide range of application fields and important industrial value.
Detail Display Drawing
Show Details
Bed is designed with a box-type structure and carefully supported by ribs, which has good stability and rigidity. The bed, workbench and gantry are made of high-quality cast iron and are treated with aging to eliminate stress.

The ram adopts a "maze" design, which has good rigidity and can prevent impurities from entering the spindle. In addition, the Z-axis spindle head is designed with central symmetry. The Z-axis screw and spindle are both located in the center of the spindle head.

The machine tool milling head is equipped with a spindle rotation detection system, which can realize automatic spindle positioning and has tapping function.

rapid feed speed(mm/min) 1 - 8000 mm/min
XYZ stroke(l*w*h) 2100*1400*800mm
cnc control system GSK/ fanuc/ siemens
Workbench width
1200mm
Workbench length
2000mm
Workbench load-bearing
5000kg
W1W2 stroke (side milling
head up and down)
600mm
V1V2 travel (side milling head
left and right)
300mm
Distance between
gantry columns
1400mm

Company Profile
We combine the latest technology, superb craftsmanship and our engineering team to provide our customers with high quality custom-made parts in a wide range of metals including stainless steel and aluminium for applications in the automotive, aerospace, mechanical engineering, mould making, medical equipment, electronics and energy industries, and we are able to carry out a wide range of high-precision machining operations, such as turning, milling, drilling, and grinding, in order to satisfy the complex machining needs of different industries. We have worked with artists, designers, architects, engineers and decorators from Hong Kong, Southeast Asia, Northern Europe and the United States. Each machine features robust construction and advanced CNC control systems. Whether it's complex 3D machining or precision surface finishing, our machines will meet your exacting demands for quality and efficiency.
Our Advantages
Exhibition
OUR SERVICES
Packaging & Shipping
FAQ
1.Can you recommend equipment based on part drawings?
Minnuo has a highly responsive pre-sales team. If you provide the drawings, we canrecommend suitable equipment for a single machine within 10 minutes. For productionlines requiring multiple machines, we'll deliver a complete solution within 5 business days.
2.Do you offer customization?
Minnuo is equipped with comprehensive production facilities. We can provide customizationfor machine systems, spindle speeds, motor power, and even the sheet metal casing.
3. How is the quality ensured?
Our company uses top-tier international machining centers to ensure precision incomponent manufacturing. Additionally, we provide a quality inspection report for everymachine before it leaves the factory.
4.What is the delivery time for machines?
We keep stock of standard models for fast delivery. Customized models can be deliveredwithin 30-45 working days.
5.After-sales service
Our equipment comes with a one-year warranty, during which we offer free repair servicesIn case of equipment issues, customers can contact our after-sales team anytime. Weprovide 24-hour technical support through remote video, phone, or on-site service toresolve problems quickly.
