100t Nc Bending 6000 mm Sheet Plate Metal Brake Steel Bending CNC Wire Fold Folding Hydraulic Press Shearing Machinery

Product Description

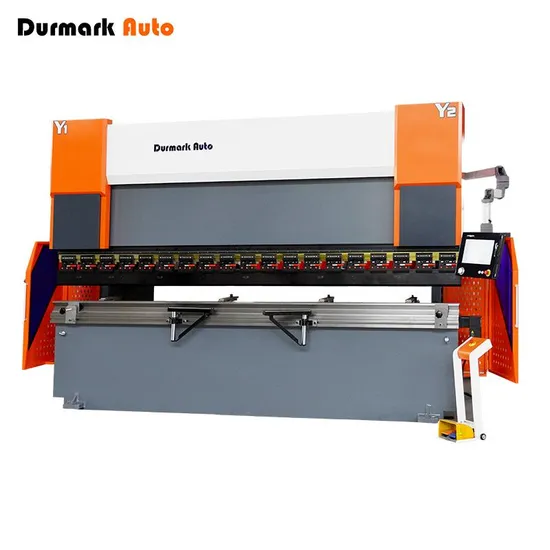

100t Nc Metal Bending Machines 6000 mm Sheet Press Brake with Da53T
Main Features 1. Welded steel structure, by normalizing and high-frequency vibration to eliminate stress, to ensure
the overall accuracy of machine tools, has excellent rigidity, anti-distortion, and anti-tilt capability.
2. Thickening of the table plate, the slider, so that the machine has high rigidity and overall welding
machine frame after a one-time process, so slider ,worktable have less deformation of the work
piece while bending, and the final product have excellent straightness and angle consistency.
3. Torsion shaft synchronization mechanism for the slider synchronous mechanism and the
mechanical stopper mechanism, stable and reliable.
4. Back gauge distance, the slide stroke adjustment controlled by servo motor and CNC system.
Back gauge adopts precision ball screw, linear guide, synchronous belt wheel drive, run fast,
accurately positioning data.
5. CNC system adopts two-axis servo control technology, set and saved hundreds of bending
programs,each consists of a plurality of machining step programming.
6. Front feeding device moves lateral through precision linear guide, easily control the spacing
between the arms.
7. Adjustable height level, which greatly improves the convenience of the work piece bending.
8. With fast clamp pallet bending mold, compatible with deflection compensation mechanism,
in order to guarantee high bending accuracy (To improve the accuracy , Hydraulic convex
compensation table or Inclined wedge machine workbench compensation can be optional)
9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door
cut-off function, emergency stop button around front and back, protective cover foot switch to
ensure safe working
Technical paraments

Model:	Unit	300T/6000
CNC Control Axis		Y1-Y2-X1-axis & Crowning
Bending force	Ton	300
Bending length	mm	6000
Distance between columns	mm	4900
Beam Stroke	mm	200
Daylight	mm	480
Throat Depth	mm	420
Table width	mm	200
Working table height	mm	850
WORKING SPEED:
Fast Speed	mm/sec	200
Work Speed	mm/sec	0~18
Return Speed	mm/sec	200
BACKGAUGE:
Max Speed X-axis	mm/sec	350
Max Travel X- Axis	mm	1000
Max Travel R- Axis	mm	250
Finger Block	Pcs	3
CAPACITY:
Hydraulic pressure	Bar	275
Motor Power	KW	30
Oil Tank Capacity	Lts	200
Overall dimensions	mm	6800x1700x2520
Heigth Under the Floor	mm	Blue and white
Machine weight	Kgs	26000
Power supply		AC 220V~400V,3ph,50/60HZ
CONFIGURATION:
Delem CNC System	DELEM DA53 ORDA66T CNC System form Netherlands
Electrical components		Siemens from Germany Brand
Main Motor		Siemens from Germany Brand
Laser Safety Protection(Optional)		DSP Laser Safe Device Type 4 from Italy
Precision linear		HEIDENHAIN /GVI from Germany Brand
Servo motor/ Servo drive	Taiwan DELTA Servo Motor & Driving System
Foot Switch (Level 4 of safety)		Siemens from Germany Brand
Hydraulic System & Pump		Rexroth hydraulic system from Germany
Hydraulic		Rexroth hydraulic system from Germany
Tubing connector		Germany EMB Brand
Ball Screw/ Liner guide		HIWIN from TaiWan Brand
Main motor drive(ECO)		Schneier from French Brand

Our service Pre-sales Service:1. Inquiry and consulting support.
2. Sample testing support .
3. Recommend the most suitable machine according to customer's purpose.
4. Factory visiting welcomed. After-sales Service:1. Training how to install the machine .
2. Training how to use the machine .
3. Warranty 1 year.
4. Engineers available to service machinery oversea .
Package and shipping
1)before packing,the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.
2)before loading,stable package,professional and skilled loader reduce damage of product during transport.
3)we fixed our machine in container by steel wire inside which will be protected well during shipping
4)unloading, we use the wooden cabinet, protect the machine and can be easily used forklift to unloading machine.
