New 5ton 10000 Liters LPG Skid Station for Sale

Product Description

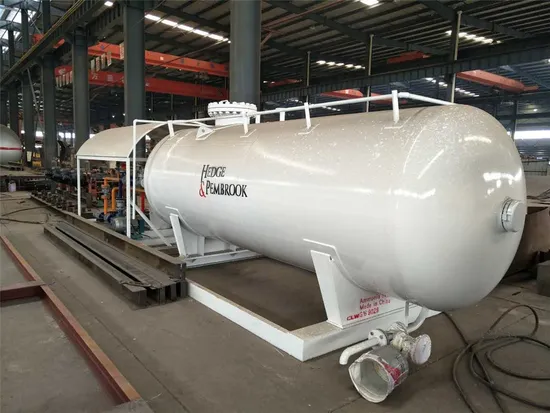

5ton 10000 Liters LPG Skid Station for Sale
LPG skid filling station Features:
> LPG storage tank with capacity of 5cbm up to 120cbm
> Color : as customer's requirement
> LPG Filling pump with motor
> LPG discharging pump with motor
> Safety Valve+Liquid Level Indication + Pressure Gauge + Thermometer etc
> Other valves and necessary accessories for the operation of lpg filling station

The parameters of 10m3 LPG tank is just for your reference, we can do customized products as requirements.

5 ton (10 CBM) LPG TANK DIMENSIONS
Volume of Tank		10 CBM
Filling Weight		3990 kg
Tank Weight		2950 kg
Thickness of Shell (mm)		10 mm
Thickness of Endplate (mm)		10 mm
Tank Diameter (mm)		1600 mm
External Dimensions (mm) (length x width x height)		5260*1620*2210 mm
Material of Tank and Main Pressure Parts		Carbon Steel Q345R
Filling Medium		Liquefied Petroleum Gas ( Propane)
Design Pressure		1.77 MPa
Corrosion Allowance		1 mm
Medium Density		420-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item	Specification/ mm		Quantity
Discharge Pipe	DN50		1
Inflow Pipe	DN50		1
Outlet	DN50		1
Gas phase balance pipes	DN50		2
Manhole	DN450		1
Drain Hole	DN50		1
Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.

10 cbm LPG station Part list
Item			Model Number			Quantity
LPG Tank			10 cbm (5 ton)			1 piece
LPG Filling Pump			2" inlet & 2" outlet			1 Piece
China Motor			380V with 220V adapter			1 Piece
LPG Filling scale			3-150 kg cylinders			1 Piece
Cut-off Valve			J41N-40 DN50			25 Pieces
			J41N-40 DN15			10 Pieces
Safety Valve			A42F-25 DN50			1 Piece
Pipe Safety Valve			A21F-25 DN15			1 Piece
Ball floating level gauge			UQZ-2.5P			1 Piece
Discharging pipe			L=4M DN50/DN25			1 Piece
Shock-absorbing Tube			L=500mm DN50			2 Pieces
Flange			2.5MPaDN15			20 Pieces
LPG Pump & Motor Specification
	Pump Brand			China local famous brand
	Model			YQB15-5
	Medium			Liquid petroleum gas
	Material			Nodular Cast Iron
	Liquid Delivery Value			5.2m³/h~15m³/h
	Inlet & Outlet Flange			2"NPT / 2" NPT
	Motor Brand			China local famous brand
	Specification			7.5-10HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable
