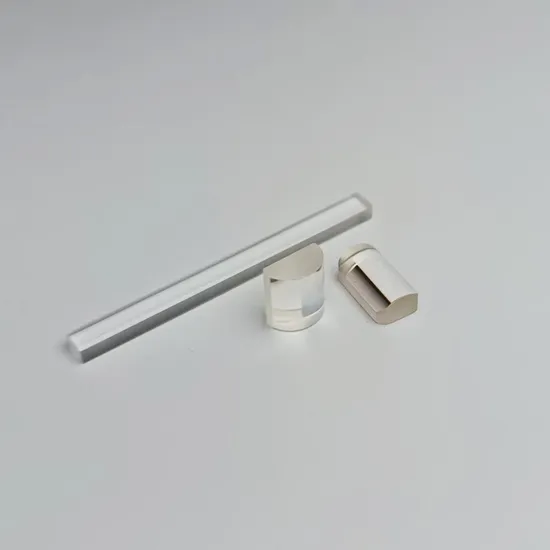

Optical Glass Plano Convex Cylindrical Lens
Basic Info.
Model NO.
JCZM 02001
Usage
Lighting, Medical, Optical, Photography
Type
Convex Lens
Transmittance
>95%
Shape
Single-lens
Material
Optical Glass
Lenses Color
Clear
Certification
RoHS, ISO9001, CE
Customized
Customized
Coating
Ar
Dimension Tolerance
+/-0.05mm
Focus Length
1-2000mm
Surface Quality
40-20
Accuracy
1/4@632.8nm
Coating Wavelength
200-4000nm
Chamfer
<0.2*45
Eccentricity
1’
Transport Package
Optical Paper Foam Board and Hard Box
Specification
20*20*10cm
Trademark
Juncheng
Origin
China Changchun
HS Code
9001909090
Production Capacity
500000 Pieces Per Month
Packaging & Delivery
Package Size
15.00cm * 12.00cm * 15.00cm
Package Gross Weight
1.000kg
Product Description
Product DescriptionOptical Lenses are optical components designed to focus or diverge light. Optical Lenses, which may consist of a single or multiple elements, are used in a wide variety of applications from microscopy to laser processing. Cylindrical Lenses are typically used to focus incoming light to a line, or to change the aspect ratio of an image. Cylindrical Lenses have a single cylindrical surface that causes incoming light to be focused in only a single dimension, stretching the image.
CCJC Optics offers the world's largest inventory of off-the-shelf optical components, which includes an extensive selection of stock optical lenses such as Achromatic Lenses or Aspheric Lenses. Many of CCJC Optics' lenses are offered with a variety of coating options for the Ultraviolet (UV), visible, or Infrared (IR) spectrums.
| Material | SCHOTT/ HOYA/ OHARA/ CDGM |
| Focal Length Tolerance | ±1% |
| Diameter Tolerance | +0.0/-0.05mm |
| Thickness Tolerance | ±0.02mm |
| Surface Accuracy | λ/4@632.8nm |
| Surface Quality | 40-20 |
| Centration | <3' |
| Clear Aperture | >90% |
| Chamfer | <0.2×45° |
| Coating:AR | A:350-650nm B:650-1050nm C:1050-1580nm |
