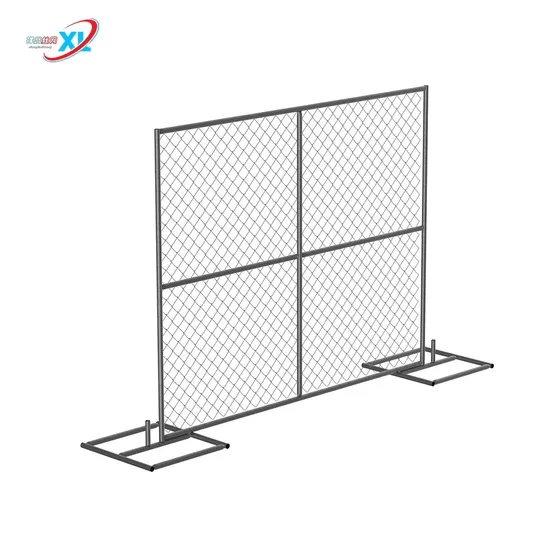

1800mm X 1200mm Hot Dipped Pre-Galvanized Construction Site/Garden Chain Link Temporary Fence

Product Description

1800mm X 1200mm Hot Dipped Pre-Galvanized Construction Site/Garden Chain Link Temporary Fence
Product Introduction
Anti-corrosion and visible Temp Chain Link Fencing
Temporary fencing with chain link mesh infill, which is a major exporting portable fencing to Australia, America, England, and Africa market. It is a modular and plug-in installation for quick and efficient setup and take down when quickly established barriers are needed.FEATURES & BENEFITS
Hand Craft Technology
Workers use galvanized wire to wrap the chain link mesh with steel frame together by tension bars and tension bands in a rather tense way.
Stable Fence Frame
360° full welding by hand and hot-dipped galvanized surface treatment to prevent cracks and corrosion.
Quick Installation
No need to dig holes or lay foundations, just connect the panel and the feet with a pre-designed plug-in way
Adaptable
Three types of stable fence feet available can find the best anchor point, even uneven ground, or sloping sites.6' × 8' Temp Chain Link Fencing
Dimensions (H × L): 6' × 8'.
Frame O.D.: 1.25", 1.5", 1.6" round optional.
Brace: Cross, vertical, horizontal brace with 1" round or the
same with frame O.D.
Wire diameter: 9, 10.5, 11, 11.5, 12 gauge optional.
Mesh opening: 2", 2.25", 2.4", 2.75" optional.
Finish: Hot dipped galvanized & Pre-galvanized Product Parameters

CHAIN LINK TEMPORARY FENCING
Product Name	Temporary Fence
Keywords	Chain Link Temporary Fencing
Outer Frame	32 mm OD X 2.0 mm Wall Thickness
Panel Size	1800 mm (L) X 1200 mm (H).
Chain Link Mesh Infills	2.5 mm X 50 mm X 50 mm
Type	6′ X 8′ Temp Chain Link Fencing
Dimensions (H X L)	6' X 8'
Frame O.D	1.25'', 1.5'', 1.6'' Round Optional.
Wire Diameter	9, 10.5, 11, 11.5, 12 Gauge Optional.
Brace	Cross, Vertical, Horizontal Brace With 1" Round
Mesh Opening	2", 2.25", 2.4", 2.75" Optional.
Finish	Hot Dipped Galvanized & Pre-Galvanized
MOQ	LOW MOQ
Sample	Accept
OEM & ODM Custom	Accept
LOGO Custom	Accept
The Product Parameter Information In The Table Is Subject To The Actual Product Received

Chain Link Mesh Temporary Fence Specification
Fence height	4ft, 6ft, 8ft
Fence width/length	10ft, 12ft, 14ft, etc
Wire diameter	2.7mm, 2.5mm, 3mm
Chain link mesh size	57x57mm (2-1/4"), 50x50mm, 60x60mm, etc.
Frame tube O.D	33.4mm (1-3/8"), 32mm, or 42mm (1-5/8") with 0.065" wall thickness
Vertical/cross brace tube O.D	25mm or 32mm with 1.6mm (0.065") wall thickness
Fence base/stand	610x590mm, 762x460mm, etc
Accessary	clamps
Material	hot dipped galvanized
Surface treatment	All joints are welded and sprayed with galvanized paint to cover any exposed metal

Flat Fence Feet Square Fence Feet Oval Fence Feet Clip Fence Base/Feet Fence PanelApplications
FAQ
Q: Can you produce as per the required specifications?
A: Of course! We warmly welcome your exclusive customization. Options include processing method, surface treatment, size, packaging style, and even label style. Please get in touch with us for details.
Q: Can you accept my logo label on your product?
A: Yes! We accept any custom logo. Just send us your design in PDF or HD image format. We will send you the layout drawing with your logo for inspection. We can also design according to your logo. We believe that our communication will make this artwork more perfect.
Q: How do you ensure the quality?
A: Don't worry! While holding quality certificates such as SGS and ISO9001, we also carry out quality supervision and inspection during the production process and product inspection before leaving the factory. We also accept any third-party inspection you require. The good news is that when the contract amount reaches a certain quantity, we will provide you with free third-party inspection.
Q: How to ensure delivery in the shortest time?
A: Our advantage lies in coordinating production, inspection, transportation, and export customs declaration, and each link is carried out simultaneously or closely connected. We will complete all work before the promised delivery time.
Q: How are your products different from those of other companies?
A: If there is anything that makes us different from other manufacturers, it must be good quality and excellent service. Maybe the products produced by the factory in accordance with industry standards may have similar quality and price, but as a leader in the industry, we must consider your interests comprehensively. Come and contact us and experience our differences!
