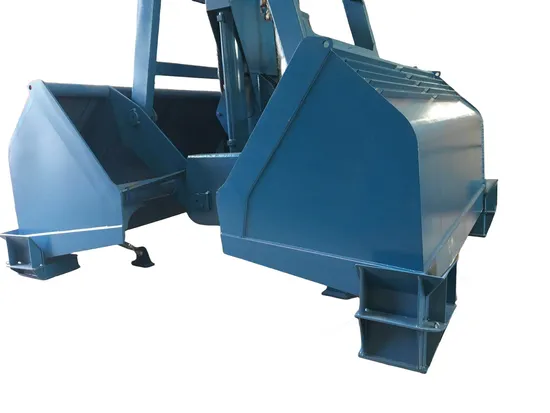

Customized 6cbm-15cbm Radio Remote Controlled Clamshell Grab Bucket with 3 Certificate

Product Description

The wireless remote control grab solves the difficulties of low working efficiency and high operating tensity when using single cable mechanical grab on single hook crane, especially suitable for Marine crane and single hook type crane on wharf, no cable is needed, the device is equipped with lithium battery to supply power for the remote control system and solenoid valve, and the service time of full power is more than 72 hours; It is reliable, easy to operate and low maintenance cost.
Wireless remote control can be used to open and unload the material at any position in the air.

SWL (t)		10	16	20	24	28
Dead weight (Kg)		4600	6500	7800	9500	11000
Volume (m3)		5	8	10	12	15
Sheave	Dia.(mm)	520	520	520	650	650
Wire rope	Dia.(mm)	24	28	28	36	36
	Ratio	3	3	3	3	3
Overall dimensions(mm)	A	2400	2800	3030	3030	3140
	B	3471	3571	3866	3866	4003
	C	3628	3782	3702	3972	4367
	D	3765	4002	3840	4166	4573
	E	2400	2700	3000	3500	4000

Grab Head Transverse Frame Through Beam Press Rods Scoops Control Valve Group Cylinders wire rope We are a professional company in bulk material handling, transportation, storage, processing, accessory equipment design, integration and manufacturing. We can provide a complete set of solutions. Thank you for reading the information and welcome to purchase! Welcome to agent distribution!
Brief introduction of the company's manufacturing capacity
The company's headquarters, technology and sales are located in Lingang New Area of China (Shanghai) pilot free trade zone,The company's manufacture base is located in Tonglu county, Zhejiang Province, which is known as "the most beautiful county in China". It is 65 kilometers away from Hangzhou city and 60 kilometers away from Qiandao Lake. The transportation to Tonglu county from other places is very convenient. No matter by railway, highway or waterway. The manufacture base has a total plant area of around 30000 square meters and workshop is equipped with more than 300 sets of various advance manufacture equipment, including 20 sets of CNC precision vertical lathe MODEL: SMVTM12000×50/150, CNC vertical lathe MODEL:DVT8000×30/32, CNC horizontal lathe, MODEL: CK61315×125/32, CNC horizontal lathe MODEL:CK61200×80/32, CNC Grounding boring and milling machine MODEL:TJK6920,etc.Most of the parts are machined by using CNC machine equipment. Theis is a hot treatment furnace with size 10.5m×8m×8m. The manufacture base also equipped with lifting capacity of 25t, 50t, 100t, 200t overhead crane to handle heavy workpiece and assembly work.
Products and services available
Material handling equipment
Storage equipment
Conveying equipment
Feeding equipment
Component of conveying system
Belt conveyor parts
Large and medium sized finishing parts
If you need above products, please contact us!
Shanghai Sunshine Industrial Technology Co. , Ltd.
