DC Power Supply Vacuum Magnetron Sputter Coater with Optional Target

Product Description

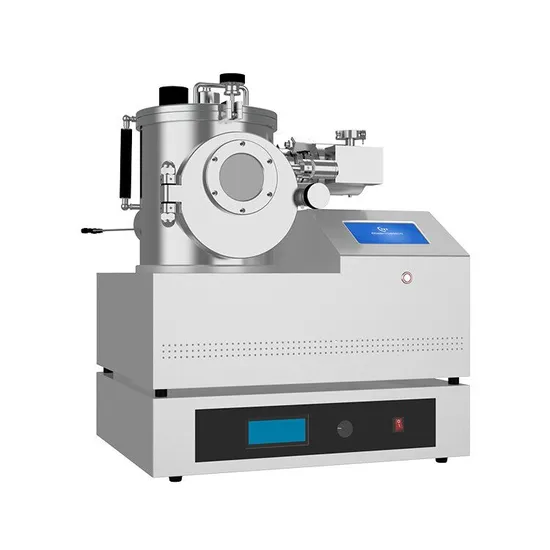

Lab DC Power Supply Vacuum Magnetron Sputter Coater with Optional Target

Product Description
MAGNETRON SPUTTERING: OVERVIEW
Sputtering is a plasma based deposition process in which energetic ions are accelerated towards a target. The ions strike the target and atoms are ejected (or sputtered) from the surface. These atoms travel towards the substrate and incorporate into the growing film.
Single target DC magnetron sputtering coater equipment is a cost-effective magnetron sputtering coating equipment independently researched and developed by our company. It has the characteristics of standardization, modularization and customization. Magnetron targets can be selected from 1 inch, 2 inches and 3 inches, and customers can choose according to the size of the plated substrate; The power supply is a 1500W high-power DC power supply, which can be used for high-energy metal sputtering coating. According to experimental requirements, DC or RF power supplies of other specifications can also be selected to achieve coating operations of various materials.
Product Parameters
Specifications of magnetron sputter coater:

Product Name	Magnetron Sputtering Coater
Model	TN-MSZ245-I-DC-SS
Sample Stage	Size	φ100mm
	Heating Temperature	<500ºC
	Rotary Speed	0~20rpm, adjustable
Sputtering Gun	2 inch*1, 50.8mm, thickness<3mm
Vacuum Chamber	Size	φ245*300mm
	Observation Window	Quartz
	Chamber Material	SUS304
	Opening	Top-open
Vacuum System	Backup Pump	Rotary vane vacuum pump, 1.1L/s
	Secondary Pump	Molecular Pump, 60L/S
	Vacuum Measurement	Composite vacuum gauge,Range:10-5~105Pa
	Sucking Port	KF16, KF40
	Exhaust Port	KF16
	Vacuum Degree	1.0×10-4Pa
	Voltage	AC 220V 50/60Hz
Sputtering Power	Quantity	DC Power Supply*1
	Output power	300W
Others	Voltage	AC220V,50Hz
	Total Power	2kW
	Overall Size	550*350*400mm

Detailed Photos
1. WE have magnetron sputtering coater with 1 target, 2 targets, 3 targets, 4 tagrst, etc. Target can be designed at the top or bottom of the chamber.
2. 0-1000W DC power or RF power target is available. Bias function is optional.
3. Target size: 1-inch, 2-inch, 3-inch, 4-inch, etc.
4. Strong magnetic target and Pernanent magenetic target is optional.
5. Magnetron sputtering coater with evaporation, E-beam is available.
6. Customized service is always available!
Company Profile
Zhengzhou Tainuo Film Materials Co., Ltd. is a comprehensive company integrating design, research and development, production and sales.
Our company's main products are: spin coater, thermal evaporation coater, magnetron sputter coater, plasma sputter coater, E-beam evaporation coater, PLD pulse laser coating machine, plasma cleaner, CVD system, PECVD system, diamond wire cutting machine, melting furnace/stove, arc melting furnace, etc.
Our products are widely used in the field of materials science research. We have extensive cooperation with domestic universities, laboratories, and new material companies. It has been successfully exported to more than 20 countries and regions including the United States, the United Kingdom, Germany, Russia, Switzerland, Canada, Brazil, etc. and have established long-term cooperative relationships with local dealers.
If you are conducting materials research, please contact us and we will provide you with customized services to make your research experiments smoother!
Packaging & Shipping
WE can ship the magnetron sputter coater by land, by sea, by air, by express, also can arrange package and shipment according to your requirements.
FAQ
Q. Are you manufacturer or trading company?
A. We are professional manufacturer of laboratory instruments, We have professional R&D team and workshop, which can promise the qulaity and after-sale service.
Q. How's your warranty?
A. Our warranty is 12 months, and provide lifetime maintenance. We provide 24 hours on-line service.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A. 5-10 days----in store. Customzied products---It usually takes 30-60 days depending on your requirements.
Q. Power supply and plug?
A. We can provide products accroding to your local voltage and plug standard.
Q. How to pay?
A. T T, L / C, D / P, etc.
Q. How is the package of goods? Delivery methods?
A. Standard export fumigation sign wooden box packaging or as your requirements.
