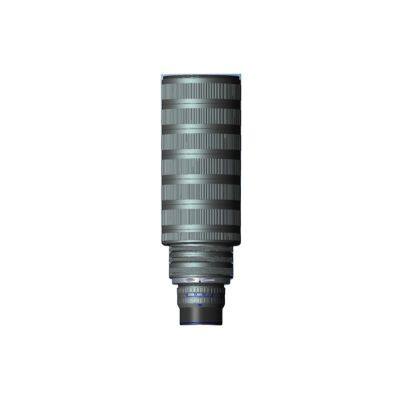

16K HD High Resolution F4.0 146mm 1.2~1.5X Line Scan Industrial Lens
Product Details
Product Details
Product Description
Product Description| Technical Parameter of Line Scan Lens | ||||
| Model No.: 02-012-031 | ||||
| No. | Item | Specification | ||
| 1 | Magnification | -0.45X | -0.5X | -0.56X |
| 2 | Working distance | 417.5mm | 383.6mm | 357.5mm |
| 3 | Conjugate distance | 658.7mm | 632.4mm | 613.5 |
| 4 | Optical distortion | <0.002% | <0.002% | <0.002% |
| 5 | Relative illuminaton | 80% | 80% | 80% |
| 6 | Image size | Φ82mm | ||
| 7 | Aperture range/FNO. | F4.0 | ||
| 8 | Focal length | 146mm | ||
| 9 | ENP diameter | 36.5mm | ||
| 10 | Filter size | M95xP0.75 | ||
| Technical Parameter of Line Scan Lens | ||||
| Model No.: 02-012-032 | ||||
| No. | Item | Specification | ||
| 1 | Magnification | -0.7X | -0.75X | -0.85X |
| 2 | Working distance | 304.5mm | 285.5mm | 267.5mm |
| 3 | Conjugate distance | 581.2mm | 574.5mm | 566.1 |
| 4 | Optical distortion | <0.001% | <0.001% | <0.001% |
| 5 | Relative illuminaton | 80% | 80% | 80% |
| 6 | Image size | Φ82mm | ||
| 7 | Aperture range/FNO. | F4.0 | ||
| 8 | Focal length | 146mm | ||
| 9 | ENP diameter | 36.7mm | ||
| 10 | Filter size | M95xP0.75 | ||
| Technical Parameter of Line Scan Lens | ||||
| Model No.: 02-012-033 | ||||
| No. | Item | Specification | ||
| 1 | Magnification | -1.2X | -1.33X | -1.5X |
| 2 | Working distance | 216mm | 204mm | 192mm |
| 3 | Conjugate distance | 567.2mm | 574.5mm | 586.5 |
| 4 | Optical distortion | <0.001% | <0.001% | <0.001% |
| 5 | Relative illuminaton | 97% | 97% | 97% |
| 6 | Image size | Φ82mm | ||
| 7 | Aperture range/FNO. | F4.0 | ||
| 8 | Focal length | 146mm | ||
| 9 | ENP diameter | 36.7mm | ||
| 10 | Filter size | M95xP0.75 | ||
| Technical Parameter of Line Scan Lens | ||||
| Model No.: 02-012-034 | ||||
| No. | Item | Specification | ||
| 1 | Magnification | -1.75X | -2.0X | -2.25X |
| 2 | Working distance | 179.3mm | 168.8mm | 154.3mm |
| 3 | Conjugate distance | 606.1mm | 632.4mm | 690.4 |
| 4 | Optical distortion | <0.001% | <0.001% | <0.001% |
| 5 | Relative illuminaton | 98% | 98% | 98% |
| 6 | Image size | Φ82mm | ||
| 7 | Aperture range/FNO. | F4.0 | ||
| 8 | Focal length | 146mm | ||
| 9 | ENP diameter | 36.5mm | ||
| 10 | Filter size | M95xP0.75 | ||
