Double Z Type Blades Sigma Mixer Rubber Kneader with Electric Heating

Product Description

Product Description Industrial Chemical Mixer Heating Double Shaft Kneader Sigma Z Blade Mixer
Applicable products:
The vacuum kneading machine is widely used in many industries: high viscosity sealant, silicone rubber, BMC, adhesive, also used in batteries, ink, pigments, dyes, pharmaceuticals, resins, plastics, rubber, cosmetics etc.
Machine Introduction:
Sigma mixing machine is an ideal equipment, design for mixing, kneading, crushing, dispersing high viscosity plastic materials, and has good performance in uniform mixing, no dead ends and high efficiency kneading. It has six major components, kneading parts, base part, the transmission system, vacuum system, hydraulic system, electric control system, etc. Place of all the contact material is made of stainless steel.
There are three choices of oil circulation, electric heating, steam and water cooling. The heating and cooling can be carried out according to the requirements made of the cylinder jacket, wallboard jacket, stirring blade pass water through hot oil structure. Discharge hydraulic cylinder turned: screw the material under the loading and other forms.
The paddle shaft seal with a unique equilibrium structure of the vacuum tank to prevent the fillers wear particles into the cylinder, particularly favorable to improve the system vacuum and material purity.
Technical specifications:

Model	Full volume (L)	Motor power (KW)	Discharge Mode	Heating	Vacuum degree (Mpa)
LN-NH-2	2	0.75	Turn cylinder	Hot oil/electric Heating/steam heating/water cooling	-0.098
LN-NH-5	5	1.1-2.2
LN-NH-10	10	1.5-3
LN-NH-20	20	3-5.5
LN-NH-50	50	4-7.5
LN-NH-100	100	5.5-7.5
LN-NH-200	200	7.5-15	Turn cylinder/screw discharge
LN-NH-300	300	11-18.5
LN-NH-500	500	18.5-30
LN-NH-1000	1000	22-55
LN-NH-2000	2000	45-75
LN-NH-3000	3000	55-110
LN-NH-5000	5000	75-150

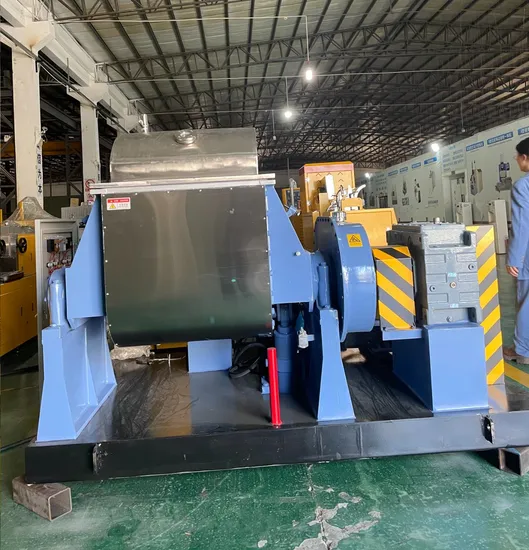

Detaiedl Photos
FAQ
Q1:Where is your factory factory?
A1:Guangdong Lina Industrial Co. Ltd. is located in Dongguan City, China.
Q2:What kind of machinery and equipment does your company focus on?
A2:We foucs on rubber&plastic machine.The core products include mixers, open mixers and granulation production lines.
Q3:How do you ensure the quality of your factory's production?
A3:We have senior assemebly and technical team to produce high-level machinery productions.
Q4:What about your after-sales service?
A4:We have experienced overseas service technical engineers who can help you install your machines and support the training of your workers.
Q5:What is your delivery time?
A5:Delivery time depends on the user's choice, usually within 60 days
Q6:How long is your warranty period?
A6:One year.
If you have any other questions, please contact us.
