5 Axis CNC Milling Machine Manufacturer Vertical Machining Center 5axis CNC Milling Machine
Basic Info.
Model NO.
VMC850
Condition
New
Control
Automatic
Embossing Type
No
Embossing Roller
No
Tissue Packaging
No
Function
Multi-Function
Tissue Type
No
Xyz Axis Travel
860*510*560mm
Max.Spindle Speed
12000r/Min
Control System
GSK, Fanuc, Siemens
Transport Package
Packing in Wooden Case
Specification
3800*2350*2550
Trademark
DMTG
Origin
Dalian, China
Production Capacity
20 Sets/Month
Product Description

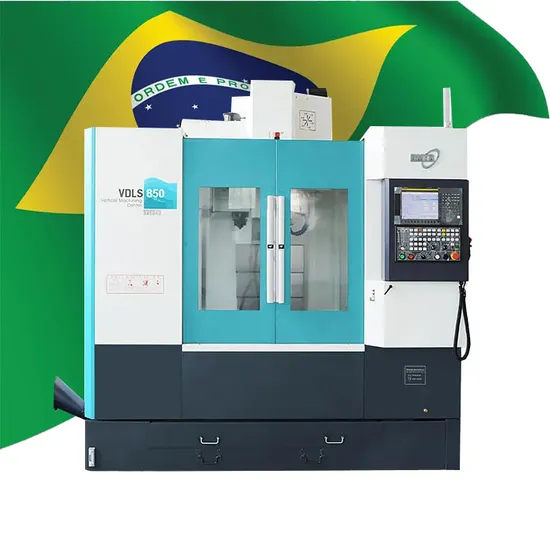

| Model | VDLS850 |
| Table | |
| Worktable size | 1000*500mm |
| T-Slot (Quantity*Width*Distance) | 5*18*100mm |
| Max load of worktable | 500kg |
| Travel | |
| X/Y/Z axis travel | 860/510/560mm |
| X/Y/Z axis guideway type | Linear guideway |
| Distance from spindle center to column | 607mm |
| Distance from spindle nose to table | 145~705mm |
| Feedrate | |
| Rapid traverse of X/Y/Z axis | 36/36/30m/min |
| Cutting feed rate | 0~10000mm/min |
| Spindle | |
| Max spindle speed | 12000r/min |
| Spindle taper | No.40 (7:24) |
| ATC system | |
| Tool magazine capacity | 24T/Arm |
| Tool shank type | BT40 |
| Max tool weight | 8kg |
| Max tool diameter (w/o adjacent tools) | 24T: φ78/155mm |
| Max tool length | 300mm |
| Time of tool change (T-T) | 24T: 2.5s |
| Accuracy | |
| X/Y/Z axis positioning accuracy | 0.008/0.008/0.008mm |
| X/Y/Z axis repeatability accuracy | 0.005/0.005/0.005mm |
| Control System and Motor | |
| Control system | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Spindle servo motor | βiI8/12000-8 (7.5/11kW) (35.8/70Nm) |
| Three axis servo motors | X/Y:βiSc 12/3000-B Z:βiS22/3000 B-B (1.8/1.8/3 kW)(11/11/20 Nm) (3000/3000/3000r/min) |
| General | |
| Machine dimensions (L*W*H) | 2496*2530*2679mm |
| Packing Size | 2310*3600*2565mm |
| Net weight/Gross weight | 5600kg/6240kg |
