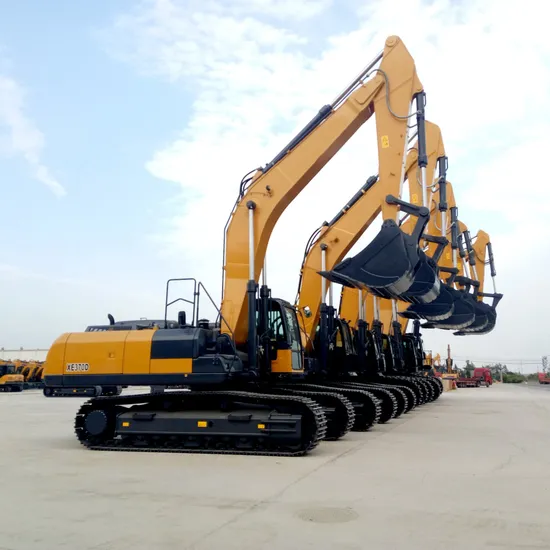

Oriemac Construction Machinery 37 Ton Heavy Hydraulic Crawler Excavator Xe370ca
| US$100,000.00-160,000.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
XE370C
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Grab Shovel
Transmission
Mechanical Transmission
Drive Type
Electric Drive
Bucket Capacity
1.6m3
Size
Large-Scale
Certification
CE, ISO9001: 2000
Condition
New
Max. Digging Force
242kn
Operating Weight
366000kg
Max Digging Height
10445 mm
Max Digging Depth
7423mm
Max Digging Radius
11114mm
Transport Package
Nude Package
Specification
ISO, CE, GOST
Trademark
ORIEMAC
Origin
China(Mainland), Jiangsu
Production Capacity
1500 Units/ Year
Product Description
ORIEMAC Construction Machinery 37 ton Heavy Hydraulic Crawler Excavator Xe370caSpecification:
Bucket capacity 1.6m3
Max Digging Height 10445 mm
Max Digging Depth 7423mm
Max Digging Radius11114mm
Excavator XE370C
1. Bucket capacity: 1.6m3
2. Max. Digging force: 242KN
3. Operating Weight: 366000KG
Parameter:
| Operating weight | kg | 36600 | ||
| Standard bucketcapacity | m 3 | 1.6 | ||
| Engine | Engine Model | --- | ISUZ AA-6HK1XQP | |
| Type | Direct injection | --- | √ | |
| Four strokes | --- | √ | ||
| Water cooling | --- | √ | ||
| Turbo charged | --- | √ | ||
| Air to air intercooler | --- | √ | ||
| No. of cylinders | --- | 6 | ||
| Rated power/speed | kW/ r/min | 184/2000 | ||
| Max. torque/speed | N.m | 872.8/1700 | ||
| Displacement | L | 7.79 | ||
| Main data | Travel speed | km/h | 5.4/3.2 | |
| Max. gradeability | % | 58 | ||
| Swing speed | r/min | 10.1 | ||
| Ground pressure | kPa | 67.8 | ||
| Bucket digging force at power max. | kN | 242 | ||
| Arm crowd force at power max. | kN | 174 | ||
| Hydraulic | Main pump | -- | 2Plunger pump | |
| Rate flow | L/min | 2x280 | ||
| Max pressure of system | MPa | 31.5/34.3 | ||
| Max pressure of travel equipment | MPa | -- | ||
| Max pressure of swing equipment | MPa | -- | ||
| Pilot press setting | MPa | 3.9 | ||
| Oil & Fuel refilling | Fuel tank capacity | L | 600 | |
| Hydraulic tank capacity | L | 320 | ||
| Engine lubrication | L | 28 | ||
| Dimensions | Overall length | mm | 11105 | |
| Overall width | mm | 3190 | ||
| Overall height | mm | 3300 | ||
| Overall width of upperstructure | mm | 2960 | ||
| Track length | mm | 5070 | ||
| Overall width of undercarriage | mm | 3190 | ||
| Standard track shoe width | mm | 600 | ||
| Track length on ground | mm | 4040 | ||
| Track gauge | mm | 2590 | ||
| Clearance under counter weight | mm | 1197 | ||
| Ground clearance | mm | 500 | ||
| Tail swing radius | mm | 3450 | ||
| Working Range | Max. digging height | mm | 10445 | |
| Max. dumping height | mm | 7287 | ||
| Max. digging depth | mm | 7423 | ||
| Max. digging depth of cut for | mm | 7266 | ||
| Max. vertical wall digging depth | mm | 6776 | ||
| Max. digging reach | mm | 11114 | ||
| Max. digging reach | mm | 10907 | ||
| Max. turning radius | mm | 4376 | ||
